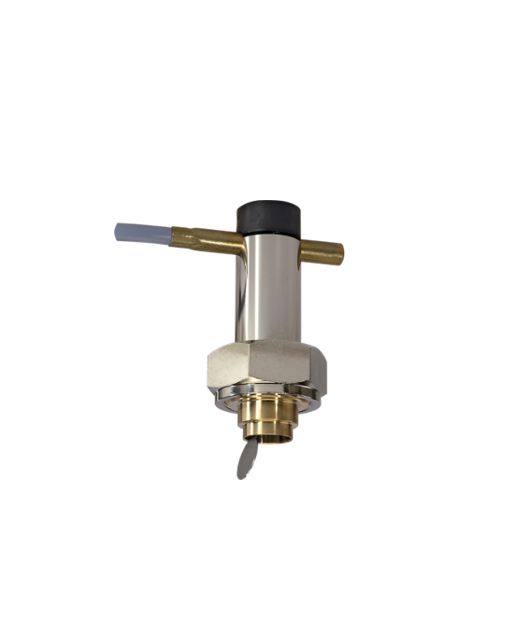

Switch: reed switch
Nominal width: DN 15 ...DN 20
Process connections: soldered/welded nozzle (further process connections available on request)
Switching range: 5.0 - 6.5 / 10.0 - 15.5 l/min
Qmax.: 20-40 l/min
Tolerance: ±15 % of full scale value
Pressure rating: PN 25
Medium temperature: -20..+ 110°C
Ambient temperature: -20..+70 °C
Media: water (oils, gases and aggressive media available on request)
Electrical data: see "UR1 brass switching unit"
Materials medium-contact
Brass construction: CW617N nickel plated CW614N, 1.4310, 1.4301, hard ferrite, NBR
Non-medium contact materials: see "UR1 brass switching unit"
Weight: see table "Dimensions and weights"
Installation location
Standard: horizontal inwards flow; switching unit not recommended underneath; other installation positions are possible; the installation position affects the switching point and switch range
Switching voltage: max. 230 V AC
Switching current: max. 1 A
Switching capacity: max. 50 VA
Protection class: 1 - PE connection
Ingress protection: IP 65
Electrical connection: cable 1.5 m, optionally for round plug connector M12x1, 4-pole
Materials, non medium-contact: CW614N, nickelled, CW614N, NBR, POM
