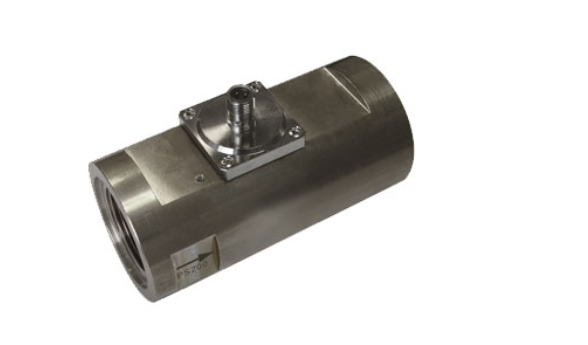

Senseca LABO-HR2E-S Electronic flow switch (5....300 l/min)
Sensor: analog Hall sensors
Nominal width: DN32/40/50
Process connection: female thread G 1 /4..G 2
Metering range: 5...300 l/min for details see see table "Ranges"
Pressure loss: ~1 bar at Qmax.
Qmax.: to 300 l/min
Tolerance: ±8 % of full scale value
Pressure resistance: PS 200 bar
Media temperature: -20..+85 °C optionally -20..+120 °C
Ambient temperature: -20..+70 °C
Media: water
Wiring: see section "Wiring"
Supply voltage: 18..30 V DC
Power consumption: < 1 W
Outputs: transistor output "push-pull" (resistant to short circuits, and reversal polarity protected) lout = 100 mA max.
Display: yellow LED (On = Normal / Off = Alarm / rapid flashing = Programming)
Ingress protection: IP 67
Electrical connection: for round plug connector M12x1, 4-pole
Materials medium-contact
Brass construction: CW614N nickelled, CW614N, 1.4310, hard ferrite
Stainless steel construction: 1.4571, 1.4310, hard ferrite PTFE-coated
Non-mediumcontact materials: CW614N nickelled
Weight: see table "Dimensions and weights"
Conformity: CE
Installation location
Standard: horizontal inwards flow; other installation positions are possible; the installation position affects the metering and switching range.
