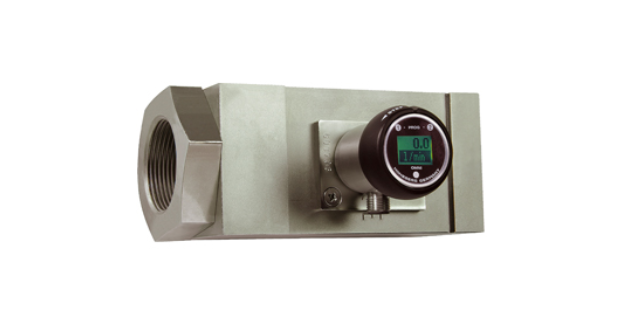

Senseca HR1MV-032GM012E ເຄື່ອງສົ່ງສັນຍານການໄຫຼກັບ LCD (2....12 l/min, brass construction, DN 32)
Sensor: Analog Hall sensor
Nominal width: DN 32
Process connection: Female thread G 1 ¼
Metering range: 2....12 l/min For details see table "Ranges"
Qmax.: to 50 l/min
Tolerance: ±3 % of full scale value
Pressure resistance: PN 200
Medium temperature: -20..+85 °C optionally -20..+150 °C
Ambient temperature: -20..+70 °C
Media: Water, oils (Gases and aggressive media available on request)
Power supply: 18..30 V DC
Power requirement: < 1 W
Analogue output: 0/4..20 mA, 0/2..10 V via a 500 W resistance after 0 V.
Switching values: S1 + S2
PNP or NPN, selectable, 300 mA max. load in total, programmable as min. value or max. value, resistant to short circuits, reversed polarity protected.
Display: graphical LCD display, extended temperature range -20..+70 °C, 32 x 16 pixels, Backlite, displays value and unit, flashing LED signal lamp with simultaneous message on the display.
Ingress protection: IP 67
Electrical connection: For round plug connector M12x1, 5-pole
Materials medium-contact
Brass construction: CW614N nickelled, CW614N, 1.4310, hard ferrite, NBR
Materials, non medium-contact: CW614N, PPS, glass
Installation location
Standard: horizontal inwards flow; other installation positions are possible; the installation position affects the display, metering and switching range.
For details please see Datasheet
