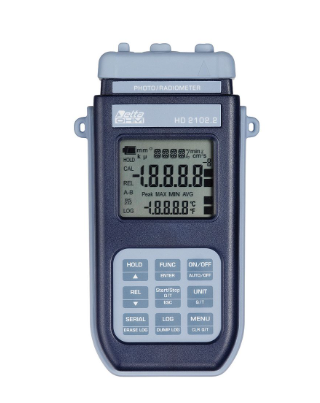

Senseca HD2102.2 ເຄື່ອງບັນທຶກຂໍ້ມູນ Luxmeter ແບບພົກພາ
Measured quantities: lux - fcd - lux/s - fcd/s - W/m2 - µW/cm2J/m2 - µJ/cm2 - µmol/(m2.s) - µmol/m2 -cd/m2 - µW/lumen
Power Supply
Batteries: 4 1.5V type AA batteries
Autonomy: 200 hours with 1800 mAh alkaline batteries
Power absorbed with instrument off: 20 μA
Mains (SWD10): Output mains adapter 12 Vdc / 1A
Security of memorized data: Unlimited, independent of battery charge conditions
Measured values storage
Type (for single probes): 2000 pages containing 19 samples each
Type (for combined probes): 2000 pages containing 7 samples each
Quantity (for single probes): total of 38000 samples
Quantity (for combined probes): total of 14000 samples
Selectable storage interval
1, 5, 10, 15, 30 s
1, 2, 5, 10, 15, 20, 30 min
1 hour
Serial interface RS232C
Type: RS232C electrically isolated
Baud rate: can be set from 1200 to 38400 baud
Data bit: 8
Parity: None
Stop bit: 1
Flow Control: Xon/Xoff
Serial cable lenght: Max 15m
Print interval: immediate or selectable between:
1, 5, 10, 15, 30 s
1, 2, 5, 10, 15, 20, 30 min
1 hour
USB interface
Type: 1.1 - 2.0 electrically isolated
Connections
Input module for the probes: 8-pole male DIN45326 connector
RS232 serial interface: 8-pole MiniDin connector
USB serial interface: 8-type MiniUSB connector
Mains adapter: 2-pole connector (positive at centre)
Time
Date and time: in real time
Accuracy: 1min/month max drift
Operating conditions
Working temperature: -5…50 °C
Storage temperature: -25…65 °C
Working relative humidity: 0…90% RH without condensation
Protection degree: IP66
Instrument
Dimensions (Length x Width x Height): 185 x 90 x 40 mm
Weight: 470 g (complete with batteries)
Material: ABS, rubber
Display: 2x4½ digits plus symbols
Visible area: 52x42 mm
