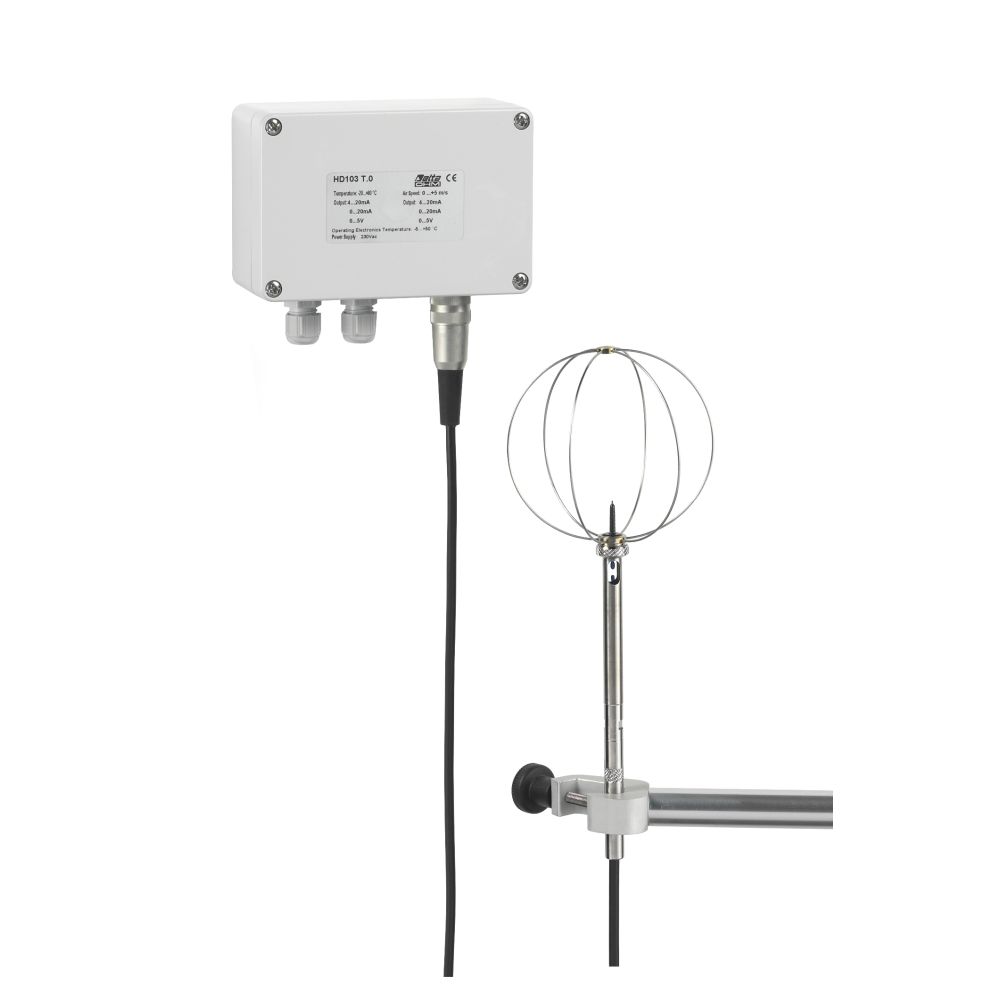

Senseca HD103T.0 ເຄື່ອງສົ່ງຄວາມໄວອາກາດທີ່ໃຊ້ໄດ້ (0.1 ~ 5 m/s, 10 ~ +80 °C, output: 4 ~ 20 mA ,0 ~ 20 mA, 0 ~ 10 Vdc)
Air speed measuring range: 0.1…5 m/s
Air speed accuracy (at 50%RH and 1013hPa)
range 0.1…0.99m/s ±0.1 m/s
range 1…5m/s ±0.4 m/s
Temperature measuring range: -10…+80 °C
Temperature accuracy
range: 0…70°C ±0.3°C
remaining range: ±0.4°C
Output (for both temperature and air speed )
4…20 mA
0…20 mA
0…10 Vdc
0…5 Vdc and 0…1 Vdc outputs on request
Load resistance
RL < 500Ω for current outputs
RL > 100kΩ for voltage outputs
Power supply: 24 Vac ±10%, 3VA, 50…60 Hz (230 Vac on request)
Operating temperature (5...75 %HR)
electronics: -5…+50 °C
probe: -10…+80 °C
Compensation temperature: 0…+80 °C
Storage temperature: -10…+80 °C
Electronics protection class: IP67
Sensor working conditions: Clean air, RH < 80%
Case dimensions: 120 x 80 x 55 (Without probe)
Probe cable length: L=5m
