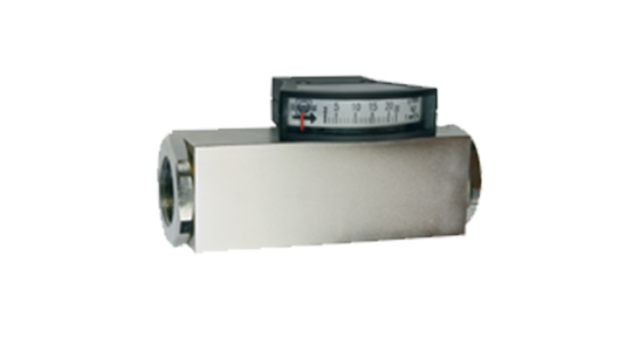

Senseca H1O1 ສະຫຼັບການໄຫຼ (0.4..1.6 bar)
Switch: without
Nominal width: DN 8..25
Process connection female thread G 1/4..G 1 (further process connections available on request)
Display range: 0.1..85 l/min (for details see table "Ranges")
Pressure loss: 0.4..1.6 bar at Qmax to 100 l/min
Tolerance: ±5 % of full scale value
Pressure resistance: PN 200 bar
Media temperature: -20..+120 °C
Ambient temperature: -20..+70 °C
Media: water (oils, gases and aggressive media available on request)
Electrical data: none
Materials medium-contact
Brass construction: CW614N nickelled, CW614N, 1.4310, hard ferrite, NBR
Stainless steel construction: 1.4571, 1.4404, 1.4310, hard ferrite PTFE-coated, FKM
Non-mediumcontact materials: Acrylic, PVC
Weight: see table "Dimensions and weights"
Installation location
Standard: horizontal inwards flow from the left; other installation positions are possible; the installation position affects the display range.
