Senseca GHTU-SHUT-MP ເຄື່ອງສົ່ງສັນຍານຄວາມຊຸ່ມຊື່ນ ແລະອຸນຫະພູມ (0~100 % RH, 40 ~120 °C, absorption hat / weather protection)
Measuring ranges:
Humidity: 0.0 ... 100.0 % RH (temperature compensated)
Temperature: -40.0 ... +120.0 °C or -40.0 ... +248 °F
Recommended humidity range: 20.0 ... 80.0 % RH
Display options: with option UNI an alternative display unit can be shown instead of the humidity measuring value. The unit selection will be done via keyboard.
Wet bulb temperature: -27.0 ... +60.0 °C
Dewpoint temperature: -40.0 ... +60.0 °C
Enthalpy: -25.0 ... +999.9 kJ/kg
Atmospheric humidity: 0.0 ... 640.0 g/kg
Absolute humidity: 0.0 ... 200.0 g/m³
Accuracy(at 25 °C and in recommended range)
Display:
humidity: ±2.5 % RH
temperature: ±0.4 % of measuring value ±0.2 °C
Output signal:
humidity ±0.2 % FS,
temperature ±0.2 % FS
Temperature compensation: automatically
Auxiliary energy: 12 ... 30 VDC or 18 ... 30 VDC (for output: 0-10 V)
Reverse voltage protection: 50 V, permanently
Perm. impedance (at 4-20 mA): RA [Ω] ≤ (UV [V] - 12V) / 0.02 A
Permissible load (at 0-1(10)V): RL [Ω] > 3000 Ω
Display: approx. 10 mm high, 4-digit LCD-display, alternating humidity and temperature display
Working temperature: -25 ... +50 °C (electronics)
Sensor head and tube: -40 ... +100 °C - for short time up to 120 °C
Storage temperature: -25 ... +70 °C
Relative humidity (electronic): 0 ... 95 % RH (non condensing); If there is a risk of condensation due to temperature changes, please use our encapsulated or lacquered types (optionally available).
Housing: ABS (IP65)
Sensor tube: tube 14 mm Ø, with screw-type protection cap

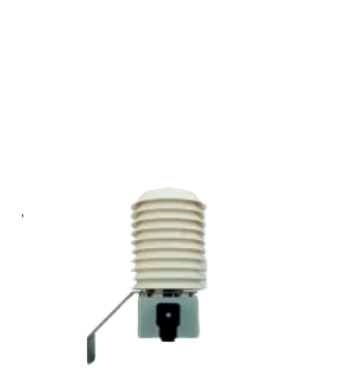

Design type SHUT: heat absorption hat / weather protection shield
Application: The heat absorption hat is especially designed for measurements in the open air. The measuring results that can be achieved will not be infl uenced by either sun or rain.
Design: Heat absorption hat made of plastic, Ø 110 mm, approx. 140 mm high. Additionally equipped with a stainless steel base for wall mounting, with 3 fi xing holes for screws with a max. shaft Ø of 5 mm. Large projection approx. 160 mm
Electric connection: elbow-type plug acc. to EN 175301-803/A (IP65)
Mounting: 4 housing holes for wall mounting or by means of plastic tube clamps for duct mounting
Functions: min-/max-value memory, offset and slope adjustable, output signal scaleable
