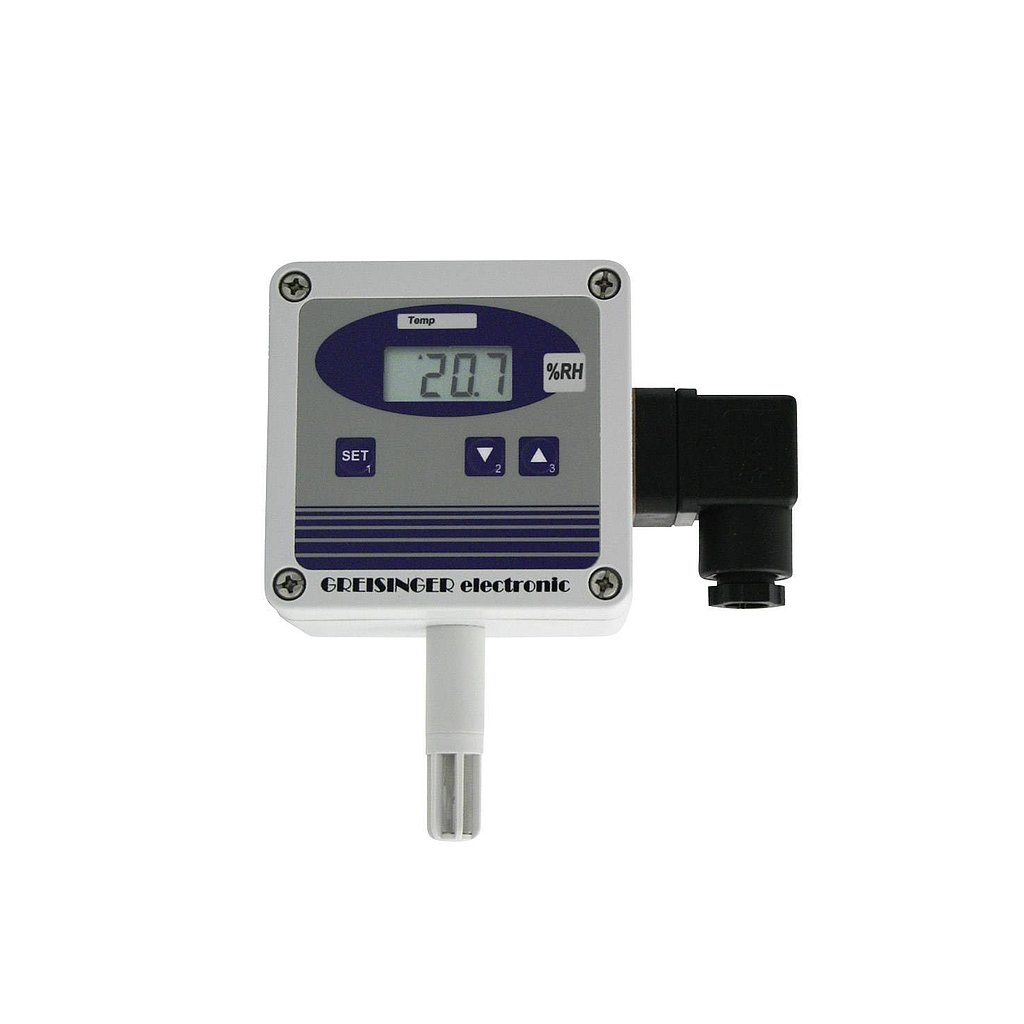

Senseca GHTU-1R-MP ເຄື່ອງສົ່ງສັນຍານຄວາມຊຸ່ມຊື່ນ ແລະອຸນຫະພູມ (probe 50m, 0~100 % RH, 40 ~120 °C, wall version)
Standard version: Probe length: 50 mm
Measuring ranges:
Humidity: 0.0 ... 100.0 % RH (temperature compensated)
Temperature: -40.0 ... +120.0 °C or -40.0 ... +248 °F
Recommended humidity range: 20.0 ... 80.0 % RH (standard)
Display options: with option UNI an alternative display unit can be shown instead of the humidity measuring value. The unit selection will be done via keyboard.
Wet bulb temperature: -27.0 ... +60.0 °C
Dewpoint temperature: -40.0 ... +60.0 °C
Enthalpy: -25.0 ... +999.9 kJ/kg
Atmospheric humidity: 0.0 ... 640.0 g/kg
Absolute humidity: 0.0 ... 200.0 g/m³
Accuracy(at 25 °C and in recommended range)
Display:
humidity: ±2.5 % RH
temperature: ±0.4 % of measuring value ±0.2 °C
Output signal:
humidity ±0.2 % FS,
temperature ±0.2 % FS
Temperature compensation: automatically
Auxiliary energy: 12 ... 30 VDC or 18 ... 30 VDC (for output: 0-10 V)
Reverse voltage protection: 50 V, permanently
Perm. impedance (at 4-20 mA): RA [Ω] ≤ (UV [V] - 12V) / 0.02 A
Permissible load (at 0-1(10)V): RL [Ω] > 3000 Ω
Display: approx. 10 mm high, 4-digit LCD-display, alternating humidity and temperature display
Working temperature: -25 ... +50 °C (electronics)
Sensor head and tube: -40 ... +100 °C - for short time up to 120 °C
Storage temperature: -25 ... +70 °C
Relative humidity (electronic): 0 ... 95 % RH (non condensing); If there is a risk of condensation due to temperature changes, please use our encapsulated or lacquered types (optionally available).
Housing: ABS (IP65)
Sensor tube: tube 14 mm Ø, with screw-type protection cap
Electric connection: elbow-type plug acc. to EN 175301-803/A (IP65)
Mounting: 4 housing holes for wall mounting or by means of plastic tube clamps for duct mounting
Functions: min-/max-value memory, offset and slope adjustable, output signal scaleable
