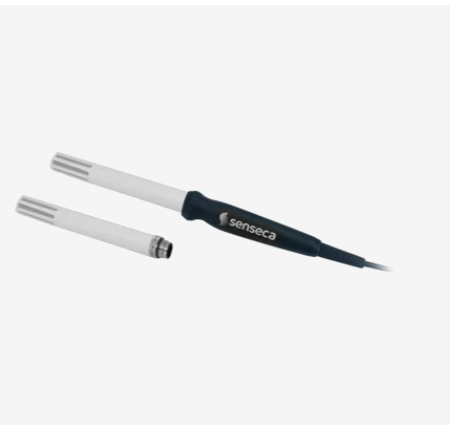

Senseca DX 311-L01-00 ເຊັນເຊີຄວາມຊຸ່ມຊື່ນ / ອຸນຫະພູມດິຈິຕອນ (0 ... 100 %, -50 ... +160 ° C)
ຜູ້ຜະລິດ: Senseca Model: DX 311-L01-00 P/N: 486774 - ຕິດຕໍ່ພົວພັນ
Accuracy:
RH: ± 1.2% (0…85%) / ±2% (85…100%) @ T=0…50 °C (1.5 + 1.5% of the measured value)% @ T=remaining range
Temperature: ± 0.1 °C ± 0.1% of the measured value
Calculated quantities: Dew point
Long-term drift
RH: ± 0.5 %RH/year
Temperature: ± 0.03 °C/year
Measuring range
RH: 0 ... 100 %
Temperature: -50 ... +160 °C
Output: UART (TTL 3.3V)
Power consumption: <1 mA typ.
Power supply:; 3.3…6 Vdc
Resolution:
RH: 0.01 %
Temperature: 0.01 °C
RH response time:; 10 s (10 ... 80 %RH; air speed=2 m/s @ constant temperature)
Sensor
RH: Capacitive
Temperature: Pt100
Connection: 4-pole M12
Accuracy for humidity: ±2.5 % r.h.
Accuracy temperature: ±0,5 °C
Cable: 1 m PVC cable, fixed
Calibration: Factory adjustment with test protocol
Measuring range air humidity: 0 ... 100 %
Measuring range temperature: -40 ... +120 °C
Scope of delivery: Device in carton box, incl. Quickstart
Version: Interchangeable without loss of accuracy
Working temperature: -25 ... +60 °C
