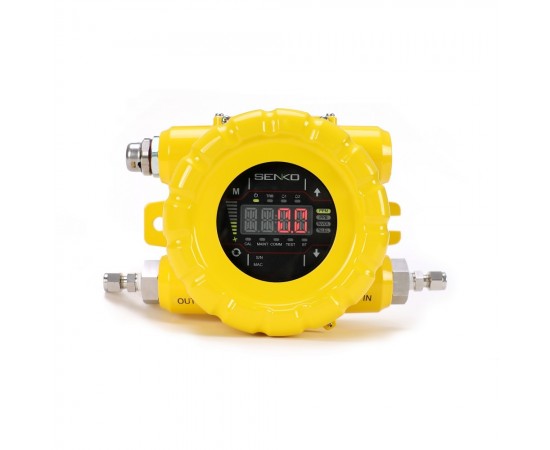

SENKO SI-301 ອຸປະກອນກວດກາແກັສປະຈຳຕົວຢ່າງ (100~1000ml)

Dimension: 194 (H) X 152.4 (W) X 136 (D) mm

Weight:  4kg

Operating Voltage : DC : 24V ±10%; PoE : 36V~57V (Typical : 48V)

Flow Rate : 100~1000ml (Normal 300~500ml/min)

Power Consumption : Approximately 5.0W

Measuring Type Display : FND, Gas concentration, Flow rate, Alarm, Device faulty

Relay : Low Alarm, High Alarm, Fault Alarm

Output Signal : 4-20mA

Digital Communication : RS-485, TCP Ethernet

Sampling Distance : Length of input gas tube : Up to 30m (FEP tube); Length of exhaust gas tube : Up to 30m (FEP tube)

Input/Output Tube : 1/4” Teflon tube

Operating Temperature:  -40°C ~ +55°C

Control/Set : 4 Buttons & RS-485 & Ethernet & Bluetooth

Remote Interface : Ethernet, RS-485

Wiring : 4 to 20mA / DC power / Relay : Up to 14 AWG

Pressure range : 90 to 100kPa

Maximum Sample flow : Max 1000ml

Maximum Sample Pressure:  6kPa

Certification: IECEx: Ex db llC T6 Gb; ATEX: II 2 G Ex db IIC T6 Gb
