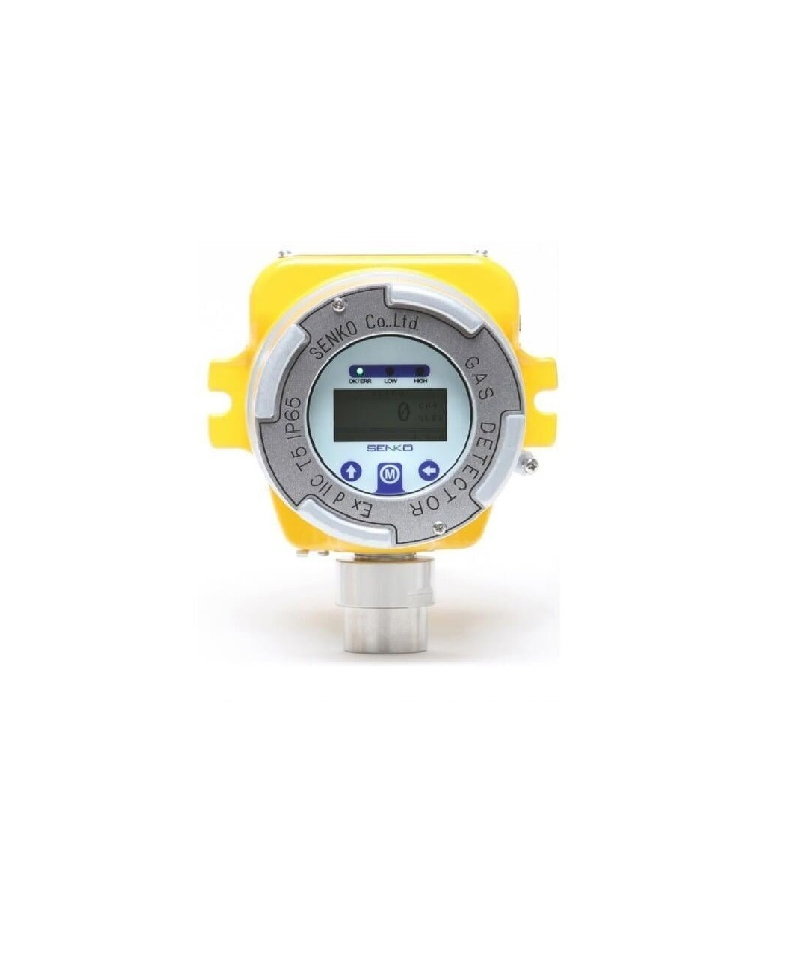

SENKO SI-100R H2S ເຄື່ອງກວດຈັບອາຍແກັສຄົງທີ່ (H2S, 0~100ppm)

Measurement Range: 0 – 100ppm

Sampling Method: Diffusion

Accuracy: ±3% of Full Scale

Display: 4-digit LCD (55W x 30H mm)

Alarm Output Signal: Relay Contact (30 VDC max, 5A)

Alarm Level: Depends on the measured gas and range

Connection Cables:

4-20mA & Power: CVVSB 1.5sq or AWG 20/2, max 500m

RS-485 Data Transmission: UL 2919 RS-485, 1 pair, max 1200m

Type: Fixed Wall-mounted

Operating Conditions:

Temperature: -20 to 50°C

Humidity: 5 to 95% RH (non-condensing)

Power Supply: 9 ~ 34 VDC, 600mA

Material: Aluminum, Stainless Steel (SS304)

Dimensions (mm): 150W x 165H x 110D

Weight: 1.9 kg
