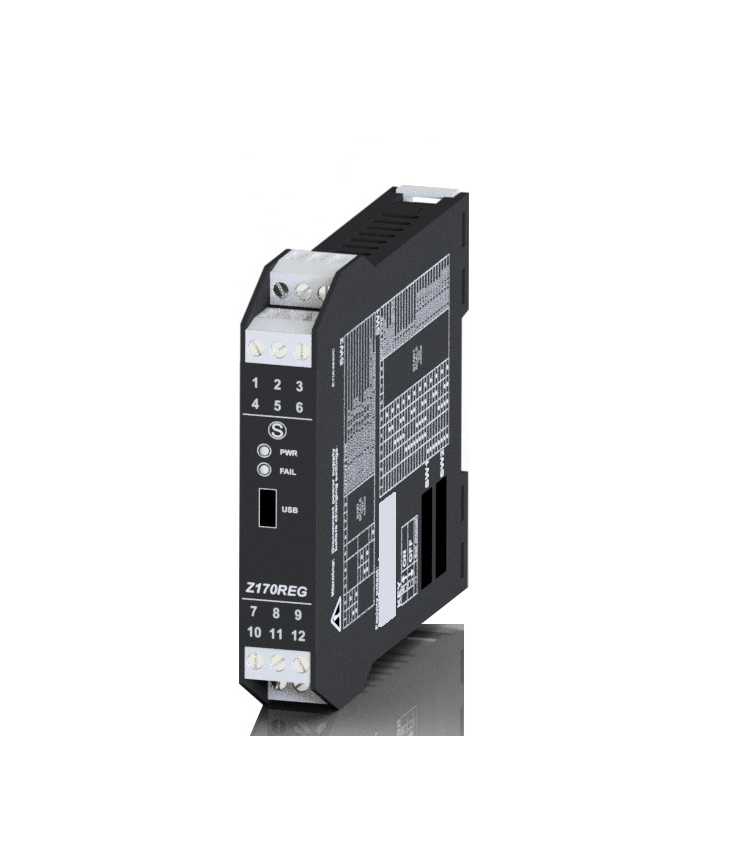

SENECA Z170REG-1 ຕົວແປງທົ່ວໄປ
Power supply: 10..40 Vdc; 19..28 Vac
Transducers power supply: Yes, Max 25 mA, 17 Vdc
Power consumption: 0.5..2 W
Insulation: 1,500 Vac
Status LED: Power supply, Alarm
Accuracy class: 0.1%
Interface: Micro USB (front panel)
Input channel:
1 settable input:
VOLTAGE: 0..10 V settable scale
CURRENT: 0..20 mA (active/passive module) settable scale
Potentiometer: 1 kΩ ..100 kΩ settable scale
TC: J,K,R,S,T,B,E,N
RTD: Pt100, Pt500, Pt1000, Ni100
Resolution 14 bit
Sampling period settable from 5 up to 20 ms
Output channels:
2 settable outputs:
VOLTAGE: 0..10 V settable scale
CURRENT: 0..20 mA (active/passive) settable scale
Resolution 14 bit
Response time: < 25 ms
Thermal drift: 0.01% /K
Linearity: <1% (input), 0.01% (output)
Programming:
DIP-switch
Software (EASY SETUP)
Android app ( EASY SETUP app)
Operating temperature: -10..+65°C
Dimension (WxHxD): 17.5 x 100 x 112 mm
Connections: Removable screw terminals
Housing: Nylon 6 30% glass fiber
Mounting: DIN rail guide 35 mm (IEC/EN 60715)
Protection degree: IP20
Weight: 200 g
