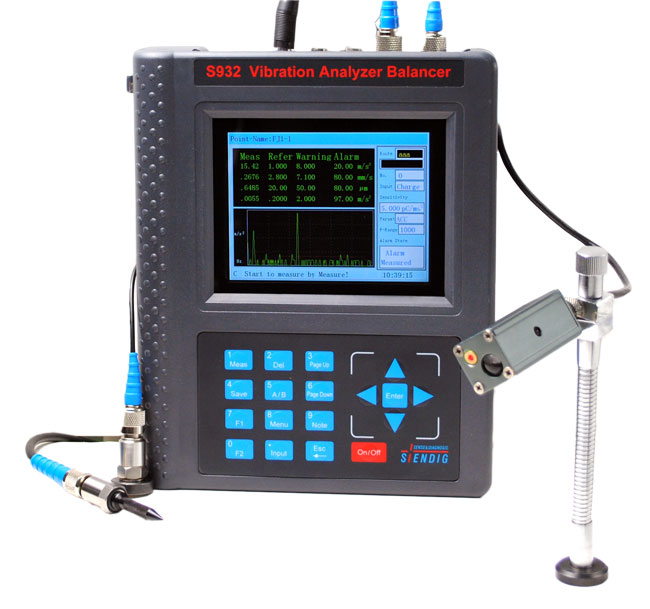

SENDIG S932 Dual-channel Machinery Analyzer/Data Collector
Specifications
·Input signal: 2 channels piezo-electric accelerometer and voltage for all other type vibration or other sensors such as sound meter, 1 trigger/tacho input
·Amplitude ranges & Frequency Response of overall value measurement:
Displacement: 0.001 – 5 mm
peak-peak: 10 - 500 Hz
Velocity: 0.1 - 200mm/s
true RMS : 10 - 1000 Hz
Acceleration: 0.1 - 250m/s2
peak : 10 - 12.5kHz
Acceleration Envelope: 0.1 - 20m/s2
true RMS: 5-1000Hz from 15-40 KHz
Voltage: 0.1 - 10V peak-peak 10 - 12.5kHz ·
Spectrum analysis: 100-12800 Lines,
windows selectable
·Selectable ranging: Auto-range or manual-range for natural frequency testing
·Frequency range of analysis: 0.5Hz-25kHz (2 channels simultaneous)
·Notepad: 10 condition codes for visual inspection
·Output: USB for communication with PC
·Power: Li-ion rechargeable battery for 8 hours continuous operation
·Operating Environment: 0~50 Celsius degree, 90% humidity non-condensing
·Rotating speed measurement range(with Laser photocell sensor):60-60000 r/min
·Software come along: MCMe3 condition monitoring & SDES diagnostic expert system
·Measurement accuracy: + 5%, Dynamic Range: 90dB
·Anti-aliasing filter: 8th order elliptic lowpass
·Dimensions: 26x21x6 cm; weight: 1.7 kg
