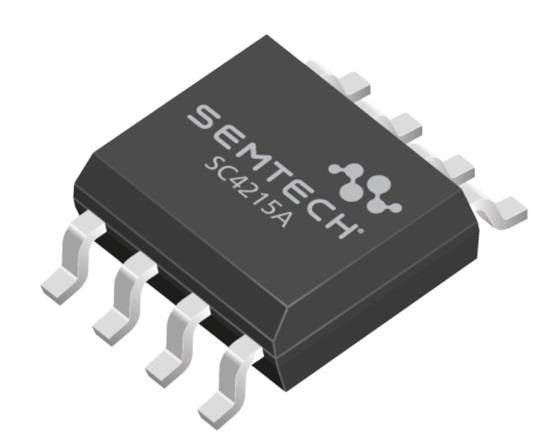

Semtech SC4215ASTRT ຕົວຄວບຄຸມກະຕຸ້ນຕໍ່ຕ່ຳຫຼາຍ VRYLW INPT/DRPOUT 2AMP REG W/E

Polarity: Positive

Tolerance: 3 %

Output Type: Adjustable

Unit Weight: 215.793 mg

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: Adjustable

Development Kit: SC4215AEVB

Dropout Voltage: 300 mV

Line Regulation: 0.2 %/V

Load Regulation: 0.5 %

Number of Outputs: 1 Output

Quiescent Current: 10 uA

Reference Voltage: 500 mV

Input Voltage - Max: 5.5 V

Input Voltage - Min: 1.4 V

Output Voltage Range: 500 mV to 3.8 V

Dropout Voltage - Max: 600 mV

Operating Supply Current: 10 uA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
