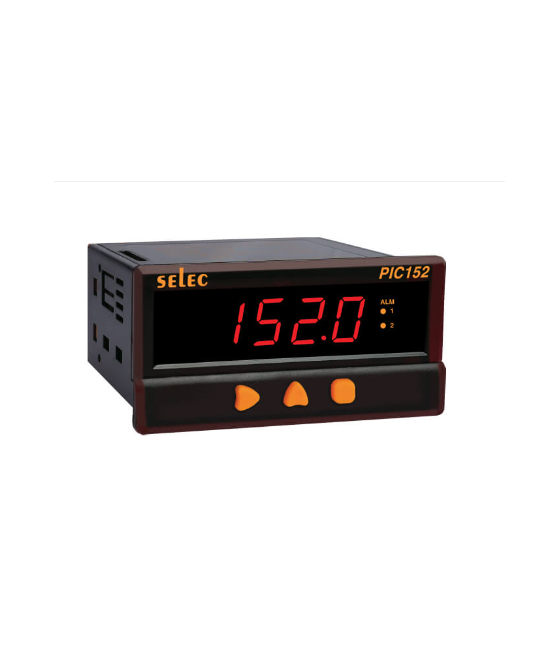

SELEC PIC152A-VI ຕົວຊີ້ວັດຂະບວນການ
Display specifications
Display: 4 Digits 7 Segment LED single display
Height of display: 12.7 mm
LED indication: Alarm ON (2 Nos)
Input specifications
Inputs: Thermocouple (J, K, T, R. S) RTD (PT100), DC Analog inputs (-5 to 56mV, 0 to 10V, 0/4 to 20mA)
Resolution: 1/0.1 for TC/ RTD only (fixed 1" resolution for R & S type TC) Decimal point position selectable: 1/0.1/0.01/0.001 for analog input
Indication accuracy
For TC inputs: 0.25% of F.S. ±1
For R & S inputs: 0.5% of F.S. 12" (20 min of warm up time for TC inputs) For RTD input: 0.1% of F.S. ±1" For Analog inputs: ±0.5% of F.S., ± 1 digit (F.S. Full scale)
Temperature unit: "C/"F selectable
Output specifications
Alarm
Relay contact (SPDT)
RELAY 1, 2. NO: 10A 250 VAC/28 VDC
NO/NC: 5A/5A 250 VAC/28 VDC
Retransmission: 0/4 to 20 mA DC, 010 5 VDC, 0 to 10 VDC
Sensor supply: 24 VDC, 30mA
Functional specifications
Alarm: 2
Alarm modes: High alarm, Low alarm, Band, Fall output and fault diagnosis
Hysteresis: 0.1 to 99.9°
Annunciator: Programmable
Relay action: Automatic or Latched
Auxiliary supply specifications
Supply voltage: 90 to 270 VAC/DC (50/60Hz) Optional: 24 VDC
Power consumption: 6 VA max @ 230 VAC
Environment specifications
Temperature Operating. 0°C to 50°C (32 to 122°F); Storage: -20°C to 75°C (-4 to 167°F)
Humidity (non-condensing): 85% RH
Mechanical specifications
Mounting: Panel
Weight: 220 gms
