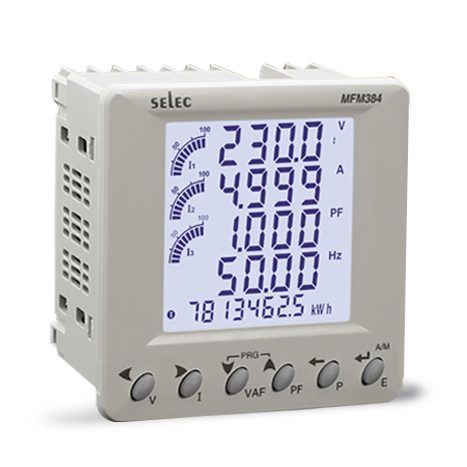

SELEC MFM384-C ເຄື່ອງວັດແທກການກະທົບທາງເສດຖະກິດ (96x96)

Measure: V, A. Hz, Pf, kW, kVA, kVAr, kWh, kVArh, kVAh and kWh, kVAh & kVArh

Display Type:LCD with Backlight, Bargraph Representation for Current

Display Configuration:4 Rows of 4 Digits, 1 Row of 8 Digits

Electrical Connection:3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W

CT coefficient: 1A / 5A - 10.000A

Output: 24VDC / 100mA

PT Primary:100V - 500kV

PT Secondary:100 - 500V AC (L-L)

Supply Voltage:85 - 270V AC/DC

Accuracy: level 1

MODBUS Communication
