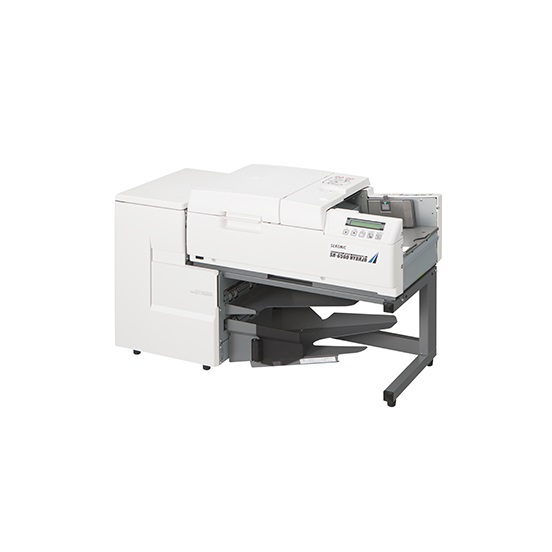

SEKONIC SR-6500HYBRID Optical Mark Reader
Mark reading sensor
Read head: Photo refletion sensor
Reading slide: Single side (Standard); Dual sides (Option)
Light source: Infla-red (Standard); Visible (Option)
Mark reading sensor: Photo reflection sensor
Light source: Infla-red (Standard); Visible red ray (Option)
Mark implements: Pencil (Standard); Pencil + Pen (Option)
Mark shapes: Rectangles, Ovals, and Circles
Read head channels: 48 Channels (1/6"), 40 Channels (0.2")
Image reading sensor
Sensor: CIS (Contact image sensor)
Width capacity: 228.6mm
Reading side: Dual sides (Standard)
Type of image: Color, Gray, Black & White image
Resolution: Up to 300 dpi
Light source: Red, Green, Blue (620, 530, 467nm)
Output file: JPEG, BMP, TIFF, PING, GIF
Connect with computer: USB 2.0
Display
Panel: 40 Characters (20x2 lines)
Control button: 5 buttons
Form capacity
ADF (Form Input): up to 500 sheets
Form Output: 500 sheets (Accept tray); 150 sheets (Rejects tray)
Scanning
Form Width: 63.5 to 228.6mm (2.5 to 9")
Form Length: 110 to 355.6mm (4.3 to 14")
Number of Rows: 140 Rows
Thickness: OMR: 84 to 157 g/m² (72 to 135 Kg)
Throughput Speeds
OMR: Upto 5,300 sheets / hr
OMR + Image: Upto 5,000 sheets / hr
Power
Vol. / Relatives: AC 100 to 240V / 50 to 60Hz
Conditions
Temp / Humid: 5 to 35°C / 30 to 80%
Dimensions W x H x D: 365 x 490 x 800 mm; (14.4 x 19.4 x 31.5")
Weight: 38 Kg ( 81.5 lb)
Options
Select Stacker: Select Stacker
Barcode (Horizontal): Option
Barcode (Horizontal): Option
Printer: Standard
Accessories: CD-ROM, (Mannual, USB Driver, Software Developement Kit), (API, Diagnostic utility software), Power cable, USB cable
