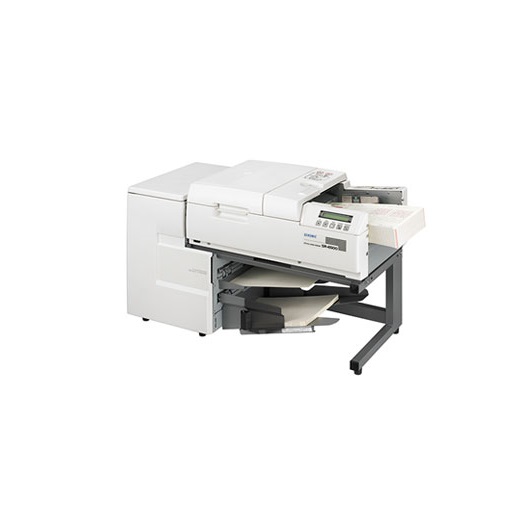

SEKONIC SR-6500 Optical Mark Reader (48 x 109)
Main functions
Reading Speed (per hour): 5,500 pages
Input Process: ADF / Hand Feed (Adjusted by Operaton mode)
Form Input: 500 forms
Form Output: 500 forms (accepts) / 150 forms (rejects)
Mark writing implements: Pencil (infra-ed ray) / Pen (Visible red ray-Option)
Read Technique: Reading reflective sensor
Number of read head: 1 (Standard) or 2 (Option)
Mark Discrimination: 256 degrees (16 steps of discrimination)
Calibration: Automatic
Mark Shapes: Rectangle, Ovals, and Circles,
Connect with PC (Interface)
Communication Interface: USB 2.0 / RS-232C serial interface
Baud rate (Only RC-232C mode): 9,600 to 115,200 bits / second
Forms
Paper Thickness: 72kg-135kg (84g/m²-157g/m²)
Paper Size: 63.5 x 110 to 228.6 x 355.6 (mm) / 2.5 x 4.33 to 9 x 14 (inch)
Mark Position: 5,323 mark positions (per each page)
Maximum Scan Area: 48 x 109
Operating conditions
Temperature: 5-35°C (41-95°F)
Relative Humidity: 30-80%
Power requirements
Noise: 65db
Dimensions (W x H xD mm): 365 x 490 x 800 (mm) with stacker
Weight: 36 kg
Optional functions
Backside Reading: Option
Select Stacker: Standard
Printer: Standard
Barcode Reader (Horizontal): JAN/EAN/UPC/NW7/ITF/CODE39/EAN128/CODE93
Barcode Reader (Vertical): JAN/EAN/UPC/NW7/ITF/CODE39/INDUSTRIAL2OF5/COOP2OF5
Pen & Pencil Reading: Option (Black and Blue Ball-Point-Pen)
Utility Software: "Markview"
