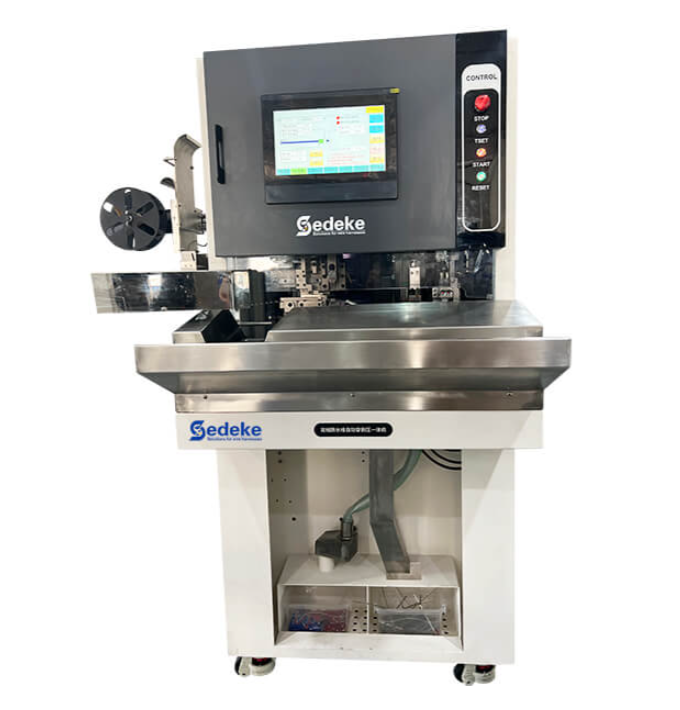

Sedeke TM-200SC ເຄື່ອງຈັກຕິດຕາມສາຍອັດຕະໂນມັດແລະສາຍ Weather Pack Terminal (Φ1mm–Φ4mm, 1200-1500 pcs/h)

Function : Strip and crimp 1 wire at a time

Power supply : 200V-240V 50/60Hz

Air source : 0.4～0.6Mpa

Dimension : 950*850*1650mm

Net weight : 250KG

Applicable wire diameter : Φ1mm-φ4mm

Min. strip length for outer jacket : 22mm

Applicable wire : AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc.

Stripping length : 1.0～10.0mm

Stripping tolerance:  0.05～0.1mm

Position tolerance : 0.05～0.1mm

Crimp terminal : open chain terminal; side feed

Crimping capacity : 2T or 4T

Press stroke : 40mm

Power : 1500W

Number of strokes:  1200-1500PCS/hour
