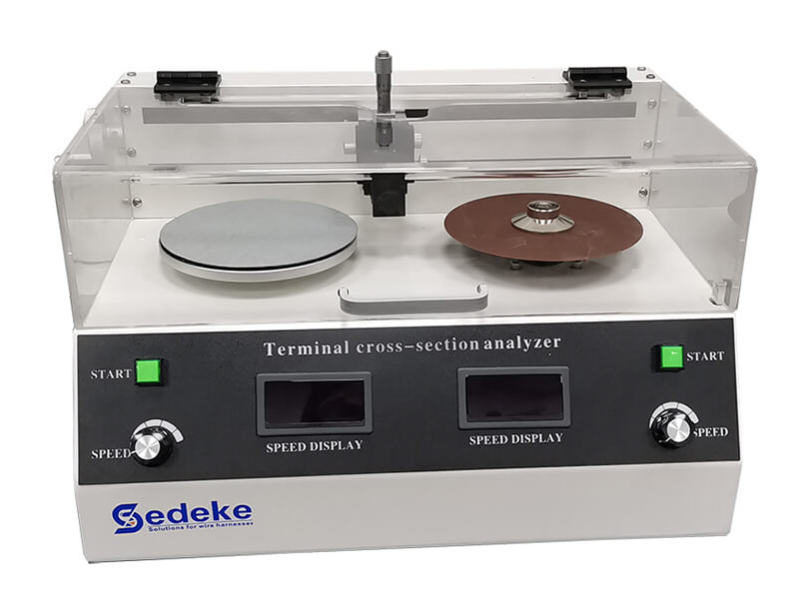

Sedeke TCA-120S ອຸປະກອນວິເຄາະຕັ້ງຕົວຕິດຂອງ Terminal Cross Section (0.01mm² ~ 120mm²)
Terminal section analysis: Japan imported segmentless zoom optical system
Total video magnification: 45 ~ 500X
Applicable wire range: 0.01mm² ~ 120mm²
Power supply: 100 ~ 240VAC, 50/60Hz
Imaging system: Japanese industrial HD video system 5 million
Cut blade specifications: Φ105 × 0.5MM (Germany imported, delicate and durable)
Abrasive sandpaper: 1200#
Standard fixture: 0.01 — 30mm²
Special-grade high precision reference ruler: 0.01/10MM
Terminal corrosion: Liquid cleaning (5S completed)
Lighting source: All white adjustable LED lighting device
Dimensions: W500 × D350 × H350
Feature: Precision integrated automatic cutting and grinding equipment, German motor 0 ~ 4000RPM stepless speed regulation, professional terminal section analysis software Section-MS with encryption lock and CD
