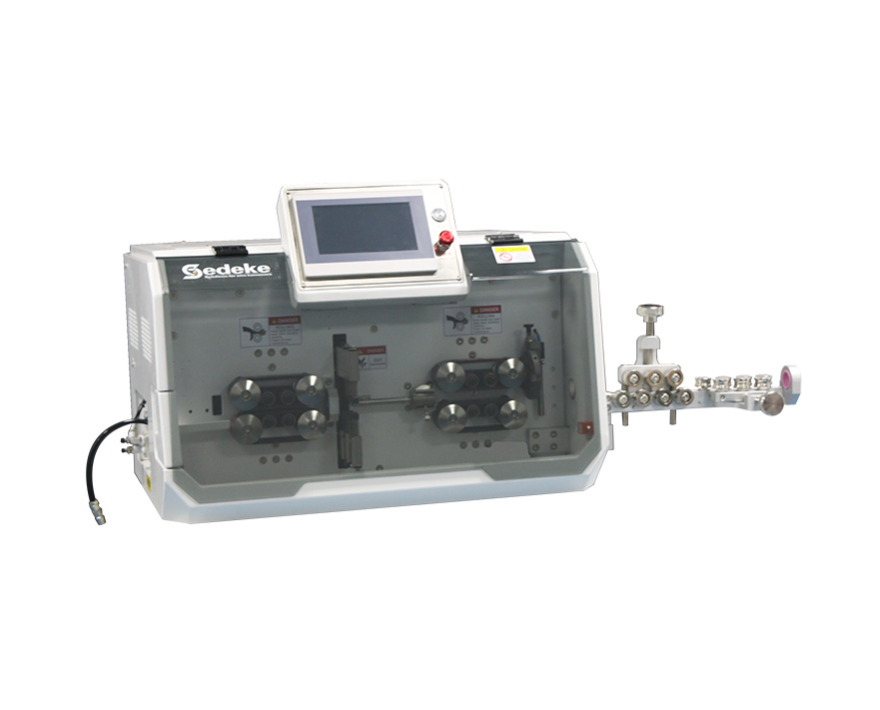

Sedeke ESC-BX30S ເຄື່ອງຕັດແລະປອດປົວສາຍສະມັກອັດຕະໂນມັດ (0.75-30mm²)

Display: 7 inch touch screen

Cable type: Cable, PVC, Sheathed cable, Multi-core sheathed cable etc.

Stripping range: 4–30mm² (including 6 cores sheath cable)

Cutting length: 1–99999.99mm

Cutting tolerance: Less than 0.002*L (L = Cutting length)

Stripping length: Front stripping: sheath cable full-stripping 10–120mm; core wire 1–120mm; End stripping: sheath cable full-stripping 10–120mm; core wire 1–80mm

Max. diameter of the conduit: Φ16mm

Blade material: High quality imported high speed steel

Production efficiency (pcs/h): 2300pcs/h; Sheathed cable 800pcs/h (depending on length and size of the wire)

Driving method: 16 rollers driven (silent hybrid stepping motor, servo tool rest)

Feeding method: Belt feeding wire, no embossing, no scratches

Remarks: Special cable can be customized, Need to send a sample wire for testing
