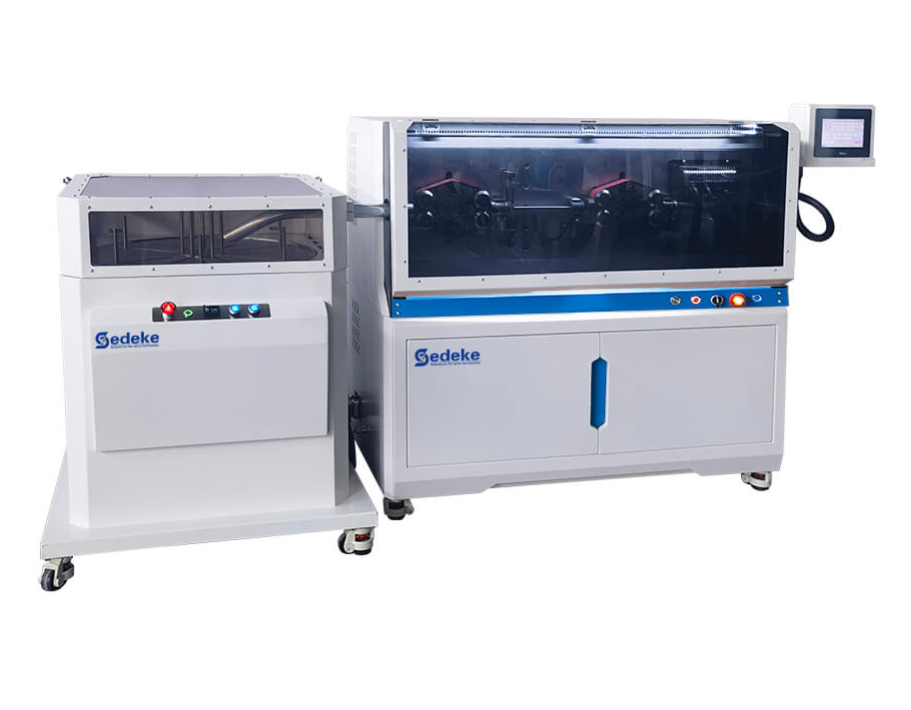

Sedeke ESC-BX30R ເຄື່ອງຈັກປົດປະກອບສາຍສະຕຣິບອັດຕະໂນມັດ (0.75 - 30mm²)

Display : 7 inch touch screen

Processing range : 0.75 - 30mm²

Wire diameter : 18mm

Stripping length: Front full stripping: 1-200mm; Front half stripping: 1-1500mm/ End full stripping: 1-100mm; End half stripping: 1-300mm

Dimensions(L*W*H) : 1280*480*1350mm

Net weight : 180kg

Cutting length : 1mm-999999.99mm

Cutting tolerance : ≤0.002*L(L=cutting length)

Blade material : High-quality high-speed steel

Rotary cutter material: White steel/tungsten steel (optional)

Productivity : 1500PCS/hour 2000PCS/hour 500-1000PCS/hour (depending on the length and size of the cable)

Drive mode : 16 rollers drive 32 rollers drive 32 rollers drive (feeding-stepper motor, blades-servo motor, rotary cutter-servo motor)

Wire feeding method : Belt feeding, no embossing or scratches on the cable

Lift operation mode : Digitally adjust the height of the pressure roller

Power supply : AC220V 50/60Hz; 110V 50/60Hz

Air source: 0.5Mpa-0.8Mpa
