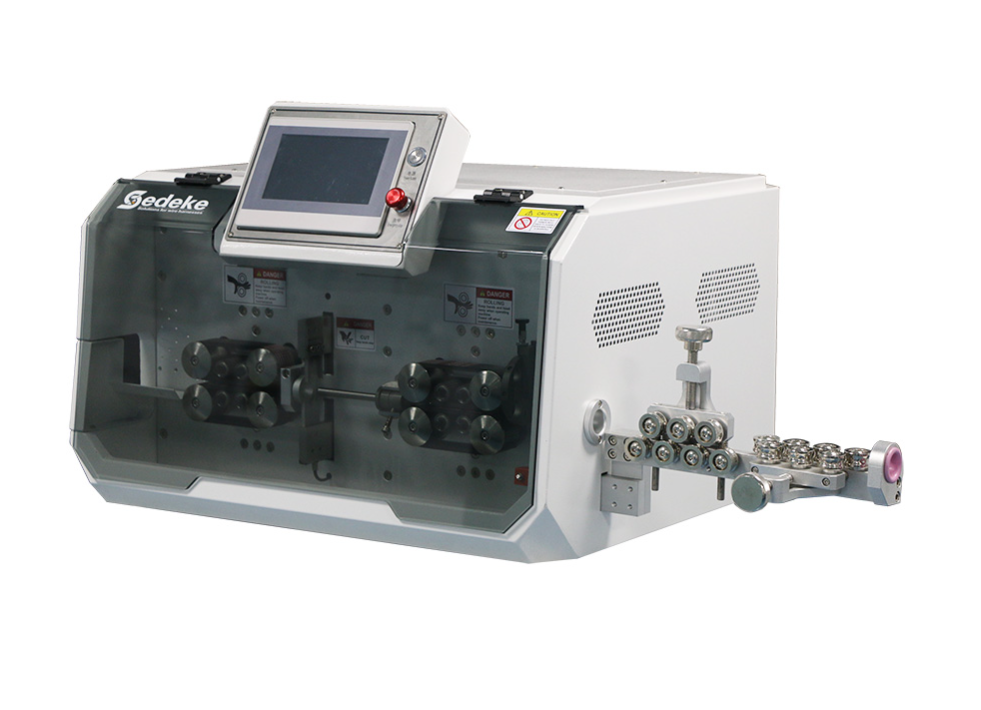

Sedeke ESC-BX30 ເຄື່ອງຕັດແລະປົດປະກັນສາຍໄຟຟ້າຂະໜາດໃຫຍ່ອັດຕະໂນມັດ (1–30mm²)

Display: 7 inch touch screen

Function: Electric Wire and Cable, Automatic cutting and stripping

Cable type: Wire, Cable, PVC, BVR, PU etc.

Stripping range: 1–30mm²

Cutting length: 1–99999.99mm

Cutting tolerance: Less than 0.002*L (L = Cutting length)

Stripping length: Front stripping: 1–120mm; End stripping: 1–190mm

Max diameter of the conduit: Φ16mm

Blade material: High quality imported high speed steel

Production efficiency (pcs/h): 2300PCS/h (depending on length and size of the wire)

Driving method: 16 rollers driven (silent hybrid stepping motor, servo tool rest)

Feeding method: Belt feeding wire, no embossing, no scratches

Remarks: Special cable can be customized, Need to send a sample wire for testing
