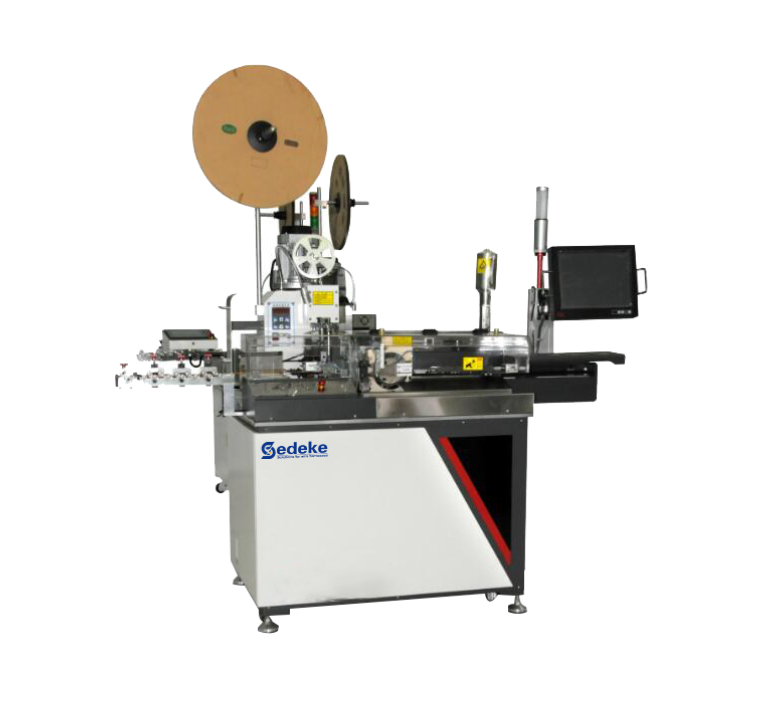

Sedeke ACC-106 ເຄື່ອງຈັກຈິງອັດຕະໂນມັດຕົວເລືອກ 5-ສາຍ ຫົວດຽວ ຕົກປົກສິ້ນສະເຫຼີມດິບຕິນ (AWG#18～AWG#32)

Power Supply: 50/60HZ 220V single phase

Processing Length: 10mm～600mm (the shortest can be 8mm)

Wire Processing Wire Range: AWG#18～AWG#32

Wire Processing Wire Range for Molds: 1.0/1.25/1.5/2.0/2.54/3.96 for horizontal and straight molds

Capacity: AWG32–AWG22#, 1 out of 5 (special wires are subject to actual production capacity); When the length is 10–600mm, the production capacity is about 4000–6500PCS/H; Larger than AWG#22, 1 out of 3, the production capacity is about 2700–3000 pieces/hour

Stripping Length: 0～7mm (7～15mm can be customized)

Twisted Wire Length: 3～7mm

Tin Dip Length: 0.5～7mm

Cutting Accuracy: ±(0.2%*L+1)mm

Air Pressure: 0.5–0.7Mpa (5–7KG/m³)

Overall Size: 1700×730×1500mm

Weight: About 450KG±15KG
