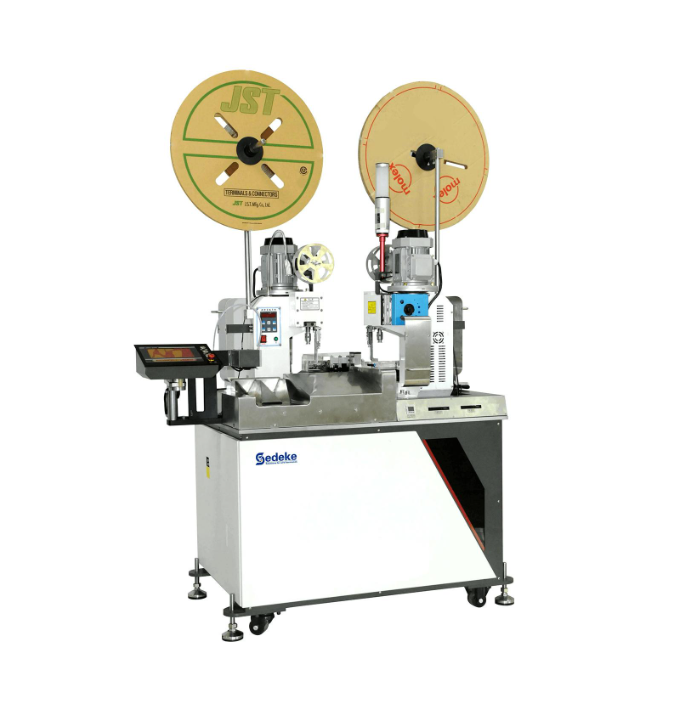

Sedeke ACC-105 ເຄື່ອງຈັບປະຕິບັດອັດຕະໂນມັດຫົວດຽວສຳລັບຈຸດຈົບປົດຫລັງສະຫຼອງດິບດິບ (AWG#16–AWG32#)

Power supply: 50/60HZ 220V single phase

Processing length: 13mm (Full Length)–99999mm

Wire processing wire range: Precision AWG#20–AWG32# (2 rounds of wire feeding); Large wire type AWG#18–AWG#14 (4 rounds of wire feeding)

Wire processing wire range for molds: 0.8/1.0/1.25/1.5/2.0/2.54 for horizontal and straight molds

Capacity: 3000–3600 pieces/hour (100–600mm, tin dipped, no twisted wires); 2200–2300 pieces/hour (100–600mm, tinned, twisted)

Stripping length: A end 0–10mm; B end 0–15mm

Cutting accuracy: ±(0.2%*L+1)mm

Air pressure: 0.5–0.7Mpa (5–7KG/m³)

Overall size: 1210×770×1370mm

Matching pay-off frame size: 920×560×1300mm

Weight: About 400KG±15KG; The weight of the matching pay-off frame is about 80KG
