Secomak KLAXON ເຄື່ອງທົດສອບຄວາມສະຖຽນຂອງຢາງ

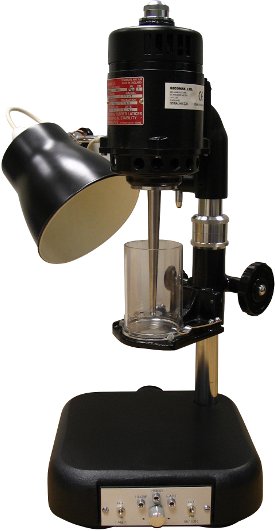

The latex rubber stability testing apparatus tests the mechanical stability of concentrated natural and synthetic latex rubber when subjected to high speed mechanical stirring or mechanical shear. Stirring is applied to the latex rubber at a constant of 14,000 rpm until the end point, or latex instability is reached.The approach to the end point is usually indicated by a drop in meniscus of the latex, loss of turbulence and a change in the sound of stirring action.

The end point is clearly determined by the first appearance of small pieces of coagulated rubber in the testing sample. This end point is confirmed by the presence of an increased amount of coagulated rubber after 15 seconds additional rotation. The end point in this case is the presence of approximately 1% of coagulum based on total solids.

The Latex Rubber Test Machine has a highly reliable series wound motor which is electronically controlled and incorporates a feedback system to accurately maintain the selected speed. It comes complete with visual confirmation in the form of coloured LEDs and is supported by a matt black aluminium bracket on a chrome plated column.

The glass (synthetic) or perspex (natural) beaker is retained on its aluminium table which is height adjustable using the moulded hand wheel.

The apparatus is mounted on hard sponge rubber pads set into the black stove-enamelled cast iron base and is fully protected for use in tropical climates

Features

Electronic speed control

Closed loop

Fully compensated voltage and loading

Quartz Referencing

Sealed for life Bearings

Designed for easy operation
