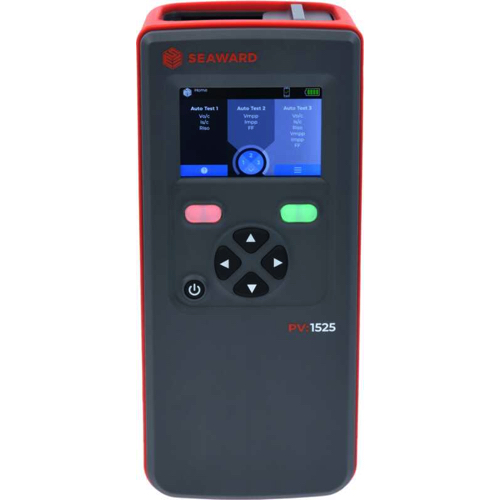

Seaward PV:1525 ເຄື່ອງມືທົດສອບ PV (1500 V DC; 25 A)
Measurement of open-circuit voltage Uoc: up to 1500 V DC
Measurement of the short-circuit current Isc: up to 25 A
Insulation resistance voltage: up to 1500 V DC
Measurement of low-resistance continuity: 200 mA
Weight: Approx. 1 kg / 2.2 lb
Dimensions: 265 mm × 115 mm × 78 mm
Display type: 3.5“ color display with backlight
Display resolution: 480 × 320 pixels
Display FOV:
70° left to right
60° top to bottom
Power source: 11.55 V 2930 mAH lithium ion battery (rechargeable)
Auto power down: User-configurable
Onboard memory: 1000 slots
Protective system: Housing IP40 as per IEC 60529 (Protection against ingress of solid foreign objects: = 1.0 mm / 0.039” Ø; protection against ingress of water: not protected)
Protection category: II
