Earth Continuity
Test Current: +/- 200mA DC
Display Range: 0.00 – 19.99Ω
Pass Value: 0.1/0.2/0.3 Ω
Insulation Resistance
Test Voltages: 250/500VDC
Display Range: 0.20 – 19.99MΩ
Pass Value: 1/2MΩ
IEC Lead Test
Tests Performed:
Earth continuity
Insulation resistance
Lead polarity
Equivalent Leakage
Test Voltage: 40V,50Hz AC nominal
Display Range: 0.1mA to 9.99mA
Pass Value: 0.5/3.5/5.0mA
Power Socket test
Input Voltage Range: 230V +10%, -15% AC
Indicators:
Phase to earth voltage
Phase to neutral voltage
Neutral to earth
General Specifications
Dimensions: H256 x W105 x D52 mm
Weight: 800g
Power Source: 6 x AA Batteries

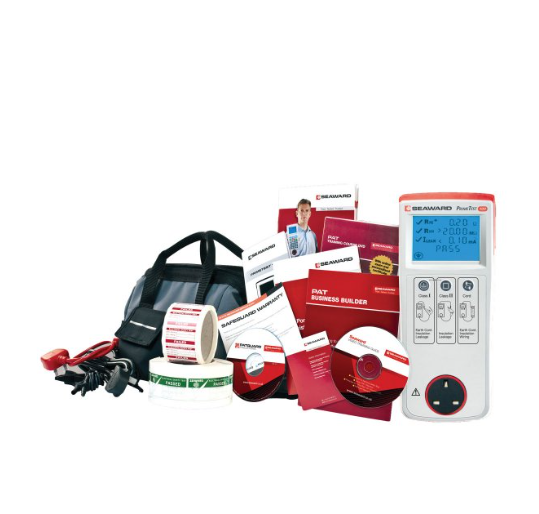

Standard Accessories (Supplied with PrimeTest 100):
0.5m extension adaptor, Earth bond lead, 6 x AA batteries, Carry Case.
