Seaward PR33D ຫົວໜ່ວຍແຮງດັນສູງ (0~19kV, 33kV, 100V, 0.9mA)
Indicator Type: Digital Reading PR33D Digital Leg and Phasing leg
Maximum System voltage: 33kV
Maximum Voltage to earth: 19kV
Measuring Range: 0.00kV - 19kV
Resolution: 100V
Sensitivity: AC/DC
Circuit current (IEC 61234-2): 0.9mA nominal @33kV
Dielectric leakage current (IEC 61234-2): 23µA nominal @ 40kV
Length (mm): 600
Diameter (mm): 25
Handle length (mm): 235
Hand guard height (mm): 23.5
Contact Electrode Type: Domed

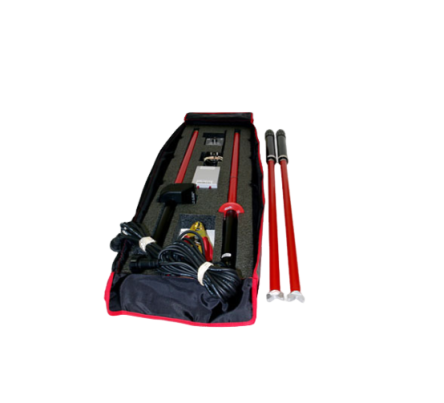

Accessories included:
1 Proving Unit
1 Battery Charger
2 Overhead Line Extensions (1.5m)
All leads and instructions
Supplied with carrying case
Bent adaptors available for use with switch gear
