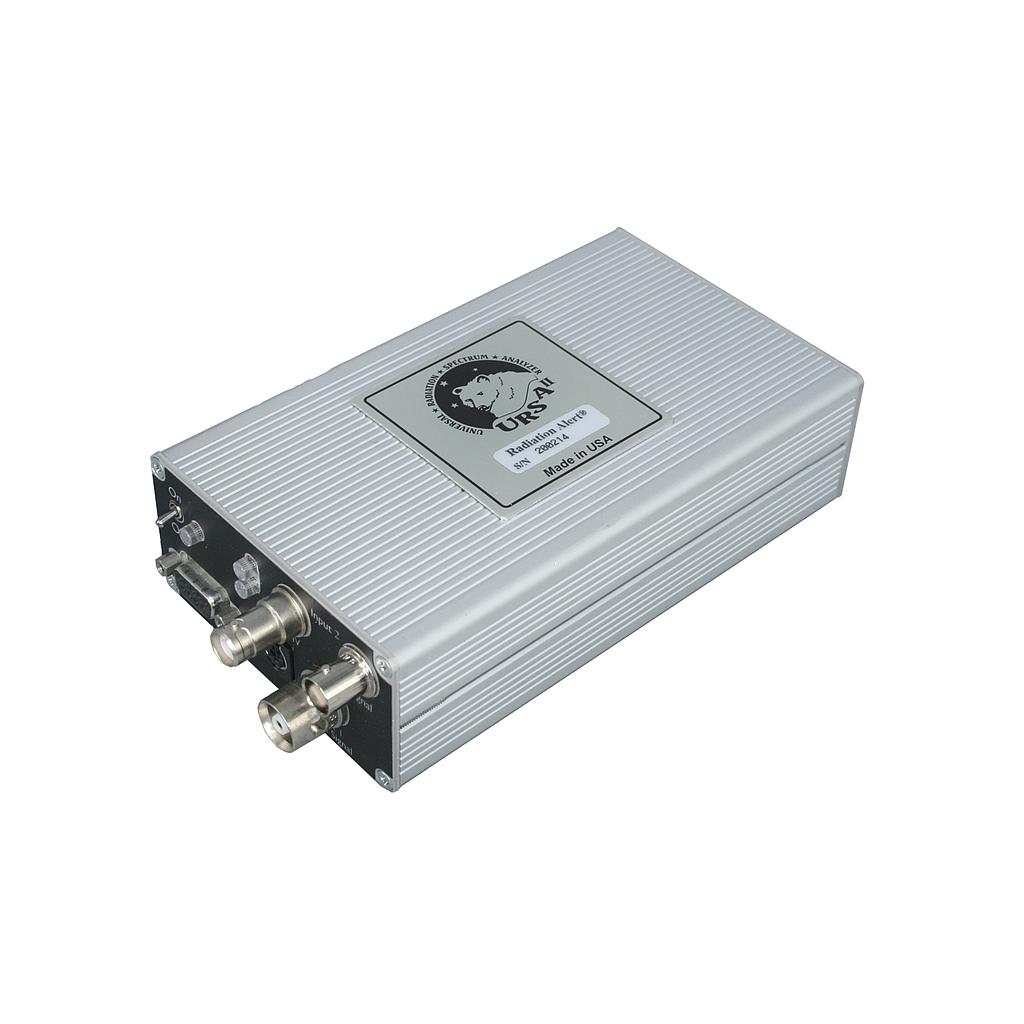

4096-channels, can also be configured for 256, 512, 1024, or 2048 channels. Internal bias voltage supply provides positive high voltage from 0 to 2000V at up to 0.5mA (Negative High Voltage available upon request). Adjustable shaping time, 0.25 to 10 µSEC. Wide gain range by utilizing coarse and fine gain controls, achieve gain from x1 to x250
Minimum System Requirements
Computer running Windows10 or 11. It has also been tested on Windows ME, 2000 and XE
Probe Connectors
Two detector inputs. One standard series “C” connector for detectors where the signal is joined with the high voltage supply. The other is for detectors having separate connections for high voltage (SHV connector) and signal (BNC connector). Active detector input is selected via software, and can be negative, positive, or preshaped (positive) signal.
External Connector: External connector provides +5V, +12V, and -12V for external preamplifiers and two logic signals for notifying external devices of alarm conditions.
Switches: Power On/Off. An internal switch located in the battery compartment suppresses battery-charging circuitry when non-rechargeable batteries are being used.
LED Indicators: On/Off, External power availability, and charge Status
Power Requirements: External 12VDC power supply, six “AA” NiMH rechargeable batteries (included charging done internally), or six standard alkaline “AA” batteries (Not included).
Temperature Range: 32° - 122°F (0° to 50°C)
Weight: 391 grams (13.8 oz.) without batteries
Size: 157 x 90 x 44 mm (6.2 x 3.5 x 1.7 in.)
Includes: Carrying Case, USB-Serial Adapter, NIM Connector, MCA Software w/ Free Updates, and AC Wall Plug.
