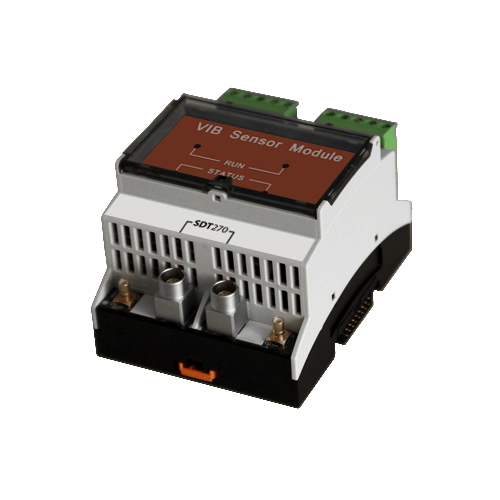

SDT VIB ການຕິດຕາມແບບຖາວອນ (10 Hz to 1000 Hz)
Operable with: ICP Accelerometer (provided by SDT International)
Processor: ARM Cortex-M4 @ 120MHz
Measurement channel: 2 parallel isolated channels
Measuring range: 0.0g to 10.0g
Resolution: 0.1g
Measurement bandwidth: 10Hz to 1kHz (ISO2954 compliant)
Signal amplification: Automatic
Operating temperature range: -20 to +55 °C | -4 to 131°F
Dimensions housing: 71.6x89.7x54.9 mm | 2.80”x3.50”x2.13”
Mounting: 35 mm DIN-rail
Weight: 180g | 6.35oz
Power supply: 24VDC +/- 10% (uses main power supply through internal DIN-rail connection, no external wiring is needed)
Power consumption: ≈100mA
Sample rate: 32ksps
Resolution: 12bits
