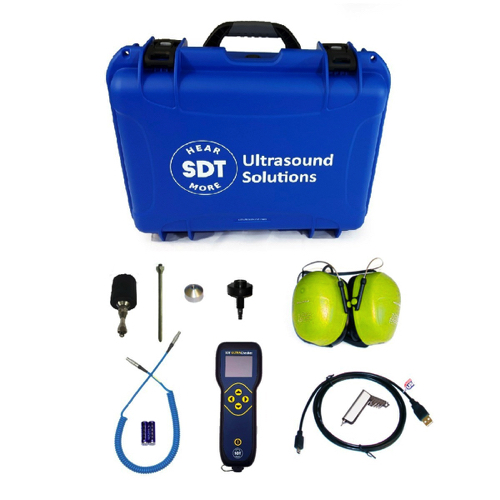

SDT ULTRAChecker ເຄື່ອງກວດຈັບ Ultrasound (35 to 42kHz)
Operable with: FlexID2, LUBESense1, RS2T, RS2N, AIRSense, ULTRASense, ParaDish2, RS2A, ExtUsAmp (cable for external transducers only, since v 3.1.508)
Measurement interface: 1 channel via a 7 pole LEMO connector
Maximum cable length: m (ft) Up to 30 (98) (since v 3.1.535)
Sensitivity: Class I exceeding ASTM 1002-11 requirements for gas leak detection with the appropriate sensor.
Display: 160x128 pixels Color OLED
Keyboard: 5 function keys
Measuring range: dBµVRMS -6 to 99.9 (reference 0 dB = 1 µV)
Resolution digits: 0.1
Measurement bandwidth: kHz 35 to 42
Signal amplification: dB +30 to +102 by step of 6 dB
RMS period time: 250 ms (main screen) / 3 sec (bar graph)
Sampling frequency: kHz/ksps 64, post-heterodyne
ADC Resolution: bits 12
Operating temperature range: °C (°F) -10 to +50 (14 to 122) non-condensing
IP rating: IP 42
Dimensions Housing: mm (in) 158x59x38.5 (6.22x2.32x1.51)
Weight: g (oz) 164 (5.78)
