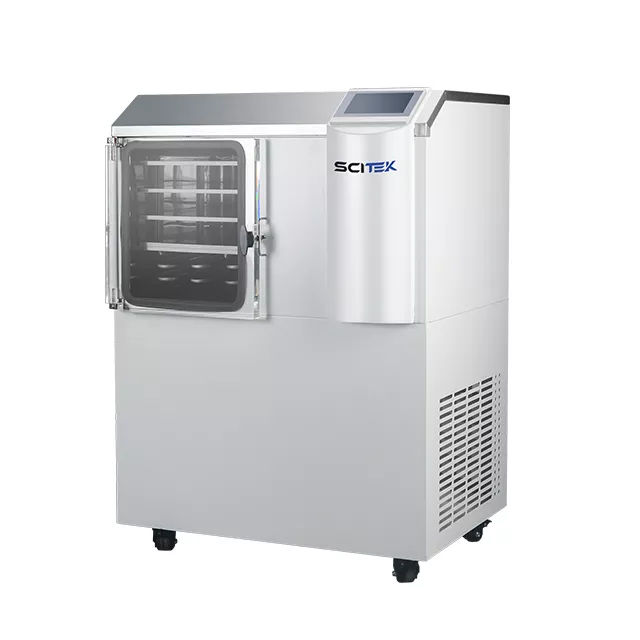

Scitek FD-P4S Pilot Freeze Dryer ສໍາລັບຕົວຢ່າງຂອງແຫຼວແລະແຂງ (0.36 m2, 3300W)

"Freeze-drying Area(m2): 0.36

Cold Trap Water Capture Capacity(kg): 3

Tray Size(mm): 300x400

Tray Quantity: 3+1(temperature compensation board)

Minimum Cold Trap Temperature(℃): -65℃

Shelf Temperature(℃): -50~60℃

Vacuum Degree(Pa): ≤1Pa

Number of Penicillin Bottles That Can be Placed (For Reference Only):

16mm/2ml: 2400

22mm/5ml: 1050

22mm/7ml: 1000

Vacuum Pump Standard

Power Supply: AC220V, 50/60Hz

Consumption(W): 3300

G.W. (kg)(Including Vacuum Pump): 270"

"FD-PS series can be used for both liquid and solid samples, and all operations can be carried out inside the chamber. Based on the set temperature, time, and vacuum pressure, the sample can be pre-frozen in situ, with temperature probes on each shelf. The transparent organic glass cold trap door allows observation of the ice formation inside the cold trap. Quick hot gas defrosting can be selected, with shelf temperatures ranging from 50°C to +60°C. The effective shelf area ranges from 0.1 to 0.48m2.

Freeze Dryer Features:

Microcomputer control and touch screen

Remote control via mobile phone and computer

Internationally renowned compressor

Acrylic transparent door

Standard vacuum control function

Adjustable heating and cooling speed"
