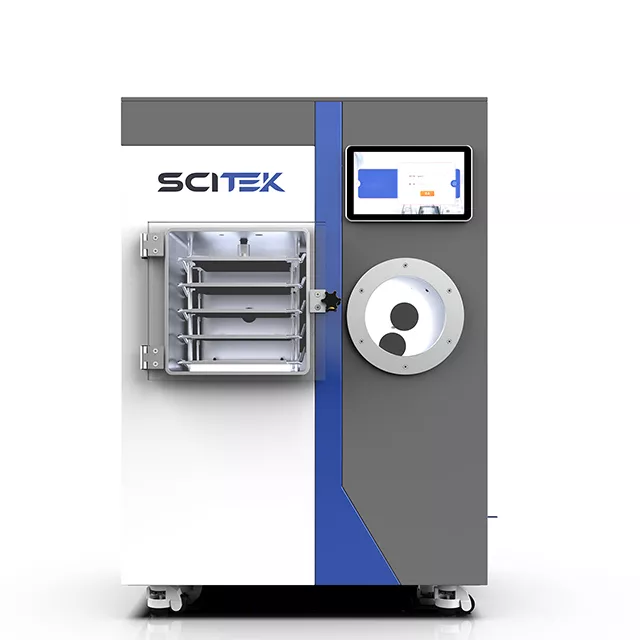

Scitek FD-B5 ເຄື່ອງອົບແຫ້ງຕູ້ແຊ່ແຂງ (0.48m2, 5000W)

"Maximum Freeze-drying Area(m2): 0.48

Cold Trap Water Capture Capacity(kg): 12kg

Tray Size(mm): 300X400

Tray Quantity: 4

Tray Spacing: 70mm

Tray Temperature Range: -50~60℃

Vacuum Pump: Standard

Vacuum Pump Pumping Speed: 4L/s

Capping Function: Standard

Vacuum Degree(Pa): ≤5Pa (No load)

Ultimate Vacuum Degree(Pa): 1Pa

Inert Gas Backfill: 0.2µm

Power Supply: AC220V, 50/60Hz

Consumption(W): 5000W

Freeze Drying Chamber (W×D×H)(mm): 496x434x441

Main Machine/Vacuum Pump:G.W. (kg): 640/17"

"Features:

316L stainless steel square freeze dryer, with organic glass material for the door

Shelf temperature control system

Real-time display of vacuum degree, cold trap temperature, sample temperature, partition temperature, and running error alarm

Freeze-drying curve optimization control technology

15-inch color LCD touch screen

Exclusive JD lyophilization operating system. Switchable between Chinese and English, simple and user-friendly. Can edit and save over 1000 process formulas, each containing 50 temperature control segments. Experiment can be paused midway to modify parameters

Automatic preservation of freeze-dried data

Audio-visual alarm system, supporting temperature alarm, vacuum alarm, experiment completion reminder function, and emergency stop function

Account privilege management (Three-level Account Privilege Management)

Hydraulic system to meet the vacuum packaging requirements after sample freeze-drying

Internet of things (IoT) remote control system (optional)

Intelligent vacuum adjustment (optional)"
