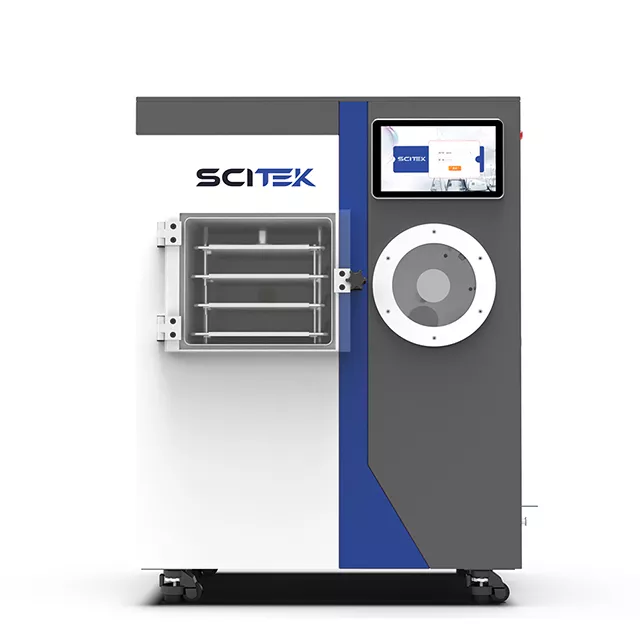

Scitek FD-B4I ເຄື່ອງອົບແຫ້ງກ່ອງ (0.36m2, 5000W)

"Maximum Freeze-drying Area(m2):0.36

Cold Trap Water Capture Capacity(kg):12kg

Tray Size(mm):300X400

Tray Quantity:3

Tray Spacing:95mm

Tray Temperature Range:-50~60℃

Vacuum Pump:Standard

Vacuum Pump Pumping Speed:4L/s

Capping Function:Standard

Vacuum Degree(Pa):≤5Pa (No load)

Ultimate Vacuum Degree(Pa):1Pa

Inert Gas Backfill:0.2µm

Power Supply:AC220V, 50/60Hz

Consumption(W):5000W

Freeze Drying Chamber (W×D×H)(mm):496x434x441

Main Machine/Vacuum Pump:G.W. (kg):640/17"

"Features:

316L stainless steel square freeze dryer, with organic glass material for the door

Shelf temperature control system

Real-time display of vacuum degree, cold trap temperature, sample temperature, partition temperature, and running error alarm

Freeze-drying curve optimization control technology

15-inch color LCD touch screen

Exclusive JD lyophilization operating system. Switchable between Chinese and English, simple and user-friendly. Can edit and save over 1000 process formulas, each containing 50 temperature control segments. Experiment can be paused midway to modify parameters

Automatic preservation of freeze-dried data

Audio-visual alarm system, supporting temperature alarm, vacuum alarm, experiment completion reminder function, and emergency stop function

Account privilege management (Three-level Account Privilege Management)

Hydraulic system to meet the vacuum packaging requirements after sample freeze-drying

Internet of things (IoT) remote control system (optional)

Intelligent vacuum adjustment (optional)"
