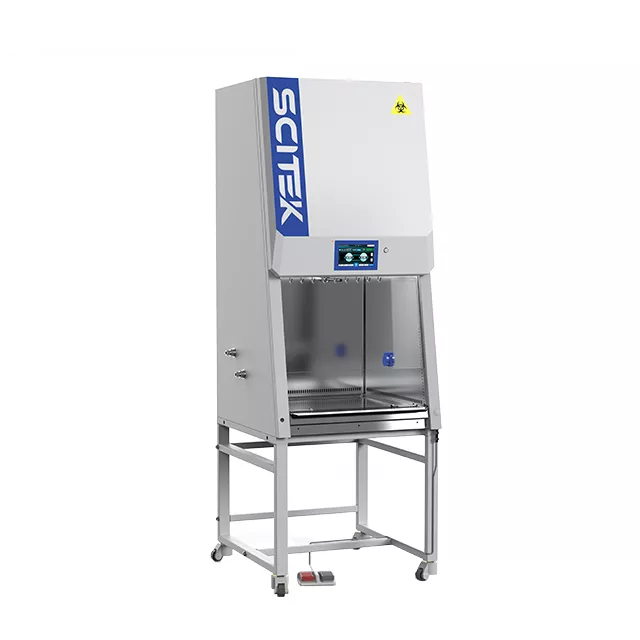

Scitek BSC-IIA2-2F ຕູ້ຄວາມປອດໄພທາງຊີວະພາບ Class II A2, 2FT

Internal Size(W×D×H):610×550×600mm

External Size(W×D×H): 710x780x1430mm (Without base stand)

710x780x2050mm (With base stand)

Work Surface Height:750mm

Airflow System: 70% air recirculation, 30% air exhaust

Downflow Velocity: 0.35m/s (Airflow fluctuation over 20%, there is visual and audio alarm)

Inflow Velocity: 0.52 m/s (Airflow velocity less than 0.40 m/s, there is Visual and Audio alarm)

Filter Specification: H14 HEPA filter, ≥99.995% efficiency at 0.3μm

Supply HEPA Filter Size: 570×490×70mm

Exhaust HEPA Filter Size: 540×370×70mm

Cleanliness Grade: Class 100 (ISO14644.1 Class 5)

Display

1. LCD touch screen.

2. Real-time monitoring and display front window status.

3. Inflow and downflow velocity.

4. Pressure.

5. Date/time/temperature.

6. Filter and UV lamp life.

7. System working status etc.

Alarm

1. Abnormal airflow velocit

2. HEPA filter failure

3. UV lamp failure

4. Front window at unsafe height

Front Window:Motorized, toughened glass

LED Lamp:10w×2

UV Lamp:15w×1

Rated Consumption /Max.Consumption:260w/320w

Not include socket consumption

Explosion-proof Socket3A 1pcs (IP54)

Socket Power Consumption Support: <1100w (220V), <550W (110V)

Illumination:≥900Lx

Sound Emission: ≤60dB(A)

Work Surface Net Vibration Amplitude:≤2μm

Power Supply:AC220V/50Hz; 110V/60Hz

Material:External Main Body: Electro-galvanized steel with antimicrobial powder coating

Work Surface: 304 stainless steel

Standard Accessories:

1. Air velocity sensor

2. LCD touch screen

3. LED lamp

4. UV lamp

5. Explosion-proof/Waterprof socket

6. Motorized front window

7. Footmaster caster

8. Foot switch

9. Removable shallow-plate stainless steel work surface

Net Weight220kg

Gross Weight270kg

Shipping Size (W×D×H)850×990×1650mm

Shipping Volume1.4 m3
