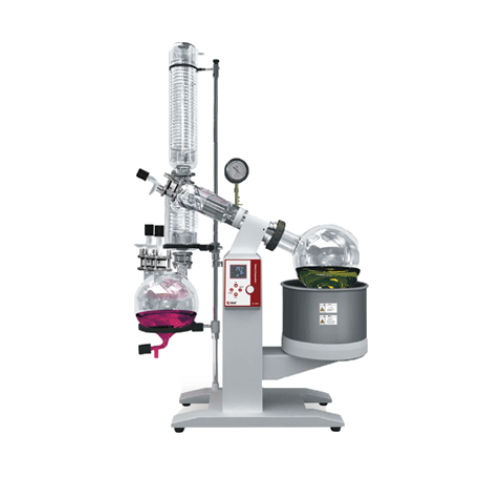

SciLab SL.Ev1020 ດິຈິຕອລ Rotary Evaporator (20 Lit, 220 V, 20~130 rpm)

-Evaporating Flask: 20 Lit, Flange Opening Φ125 mm

-Receiving Flask: 10 Lit

-Condenser: Standing, Main & Auxiliary Cooling and Highly Efficient 3 Circulating Cold Trap

-Temp. Range: 0℃ ~ 99℃

-Rotary Speed: 20~130 rpm

-Evaporating Capability: Water: 5 Lit./h, Alcohol: 11 Lit/h

-Cooling Surface: Main Condenser: 8,000 cm²; Auxiliary Condenser: 3,500cm²

-Achievable Vacuum: 399.9Pa(below 3mmHg)

-Functional of Lifting Table: Electric

-Electric Stroke: 0 ~ 190 mm

-Vacuum Sealing: PTFE and Fluorine Rubber Dual Rotating Seal

-Motor: 250 W, Phase DC Induction Motor

-Heating Boiler: Stainless steel Water Bath

-Display: Digital display

-Power Consumption: 1phase 220V, 50/60Hz, 3.8 kW or 3 phase 380V, 6.3 kW

-Dimension (mm): 1195 x 635 x h 2070

-Electrical Reqts. 1phase 220V, 50/60Hz
