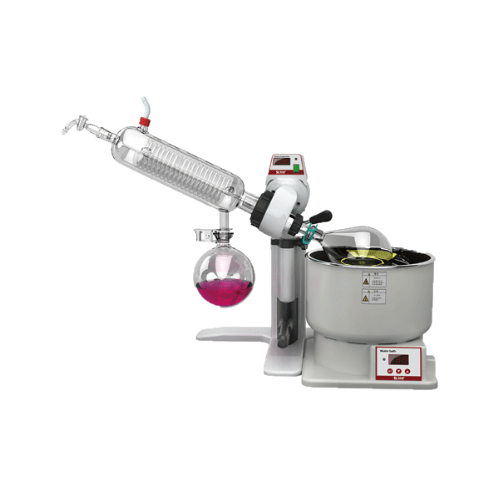

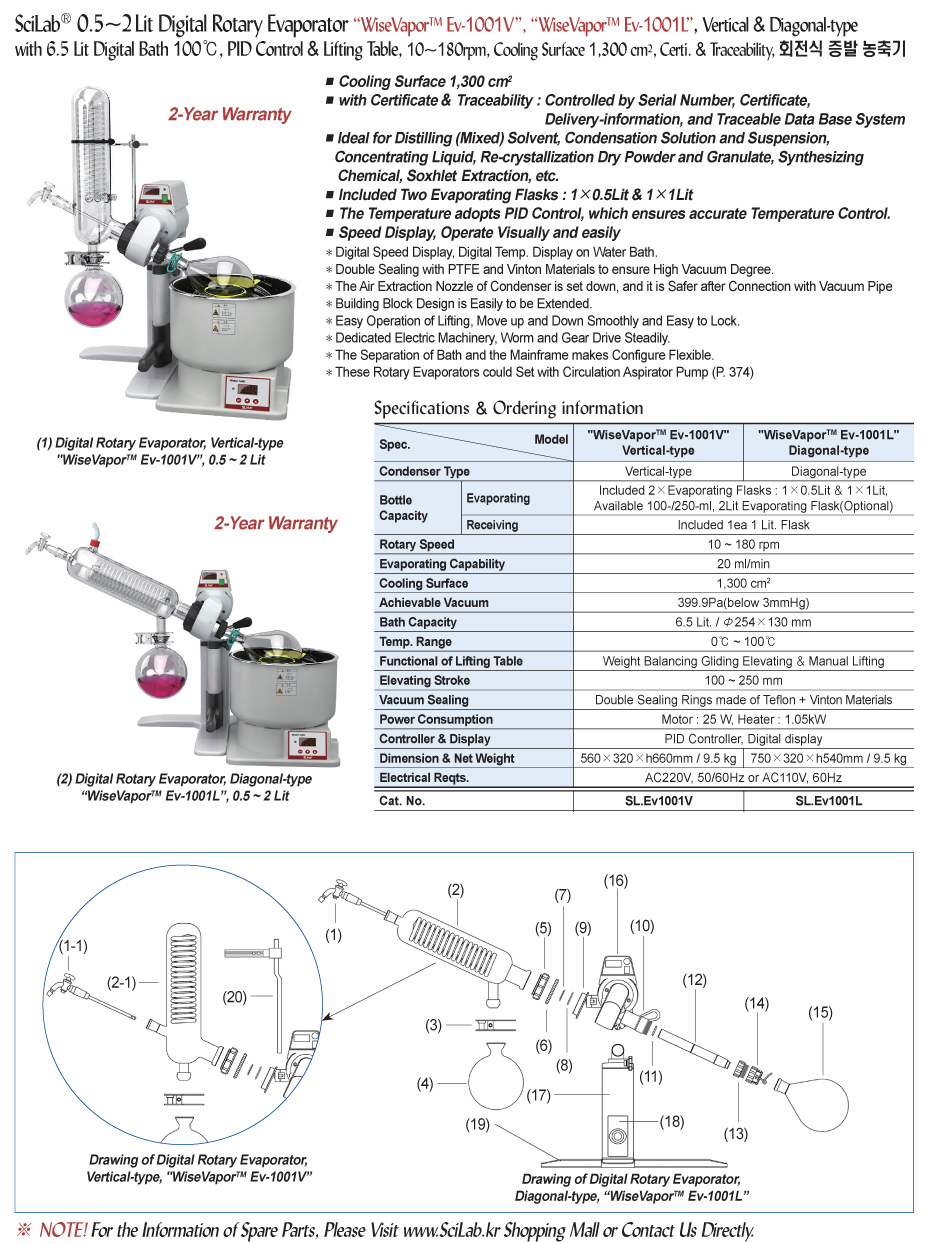

SciLab SL.Ev1001L ດິຈິຕອລ Rotary Evaporator (10~180 rpm)

-Condenser Type: Diagonal-type

-Bottle Capacity:

Evaporating: Included 2 X Evaporating Flasks: 1 X 0.5 Lits & 1 X 1 Lit.

Available 100-/250-ml, 2Lit Evaporating Flask (Optional)
Receiving: included 1 ea 1 Lit.Flask

-Rotation Speed: 10-180rpm

-Evaporating Capability: 20 ml/min

-Cooling Surface: 1,300cm²

-Achievable Vacuum: 399.9Pa(below 3mmHg)

-Bath Capacity: 6.5 Lit./Ø 254 x 130 mm

-Temp. Range: 0°~100°C

-Functional of Lifting Table: Weight Balancing Gliding Elevating & Manual Lifting

-Electric Stroke: 100 ~ 250 mm

-Vacuum Sealing: Double Sealing Rings made of Teflon + Vinton Materials

-Power Consumption: Motor: 25 W, Heater: 1.05kW

-Controller & Display: PID Controller, Digital display

-Dimension & Net Weight (mm): 560 X 320 X h660 mm / 9.5 kg

-Electrical Reqts: AC220V, 50/60Hz
