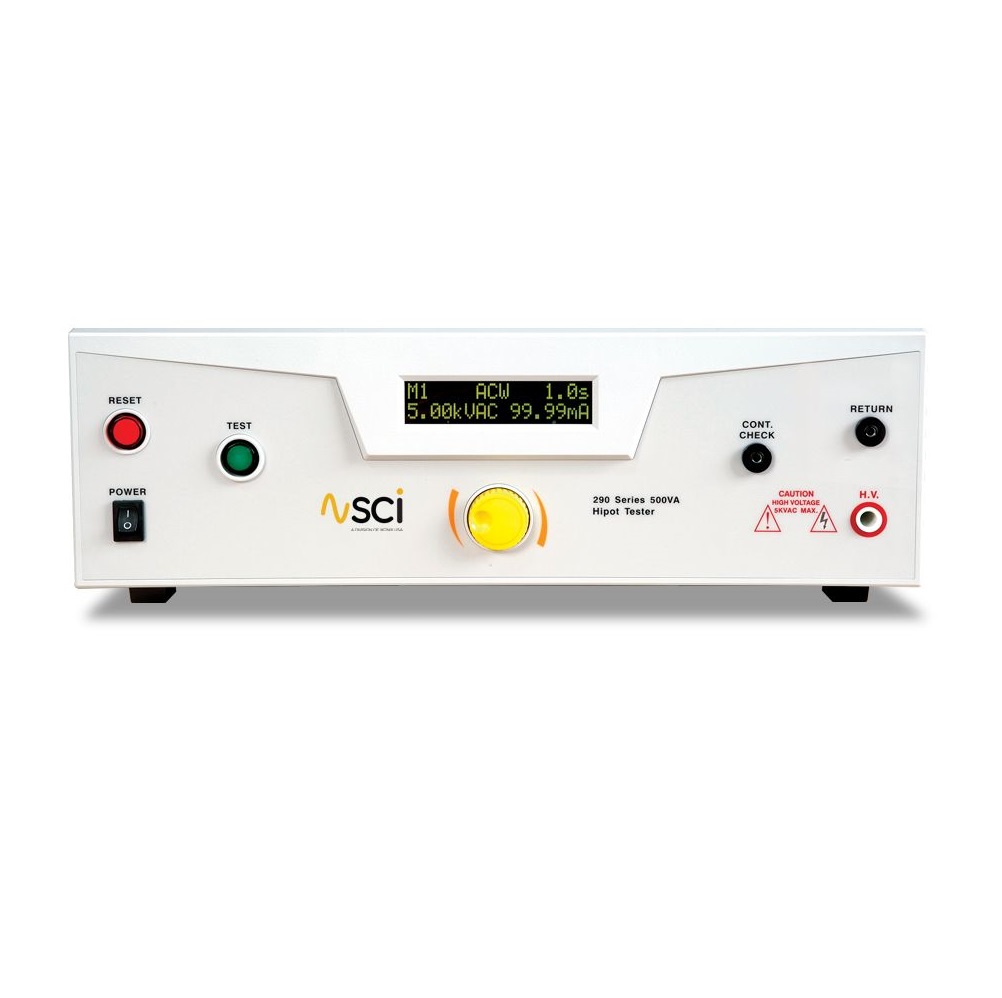

SCI 298 ເຄື່ອງທົດສອບ AC Hipot ດ້ວຍຄວາມຕໍ່ເນື່ອງຂອງພື້ນ (500VA, 5kV@100mA, 5 years warranty)
INPUT
- Voltage: 100-120VAC/ 200-240VAC ±10% Auto Range
- Frequency: 50/60 Hz ± 5%
- Fuse: 3.15A/ 250VAC Fast-Blow
DIELECTRIC WITHSTAND TEST MODE
- Output rating: AC 0-5.00 kVAC, 99.99 mA
- Voltage setting: 0-5.00 kVAC
+Resolution: 0.01 kV
+Accuracy: ± (1.5% of setting + 5V)
- AC Waveform: Sine Wave, Crest Factor=1.3-1.5
- Dwell timer: 0, 0.2-60 sec, (0=continuous), 0.1 sec/step
- Ramp timer: 0.2-180 sec, 0.1 sec/step
- Leakage failure settings
+AC Hi-Limit: 0.10 - 99.99 mA
+ Lo-Limit: 0 - 99.99 mA
+Resolution: 0.01mA
+Accuracy: ±(2% of reading + 0.06mA)
GENERAL SPECIFICATIONS
- Continuity feature
+Range: 0.0-1.50Ω
+Resolution: 0.01Ω
+Accuracy: ±(2% of setting + 0.02Ω)
- Memories: 5 (10 optional)
- Remote I/O:
+Input: Test, Reset, Interlock
+Output: Pass, Fail, Test-in-Process
- 3mA AC current limit (optional)
+Range: 0.00-3.00mA
+Resolution: 0.01mA
+Accuracy: ±(2% of setting +0.02mA)
- Safety mark: CE/cTUVus
- Dimensions (WxHxD): 16.93" x 5.20" x 11.84" (430 x 132 x 300 mm)
- Weight: 46 lbs (20.86 Kg)
