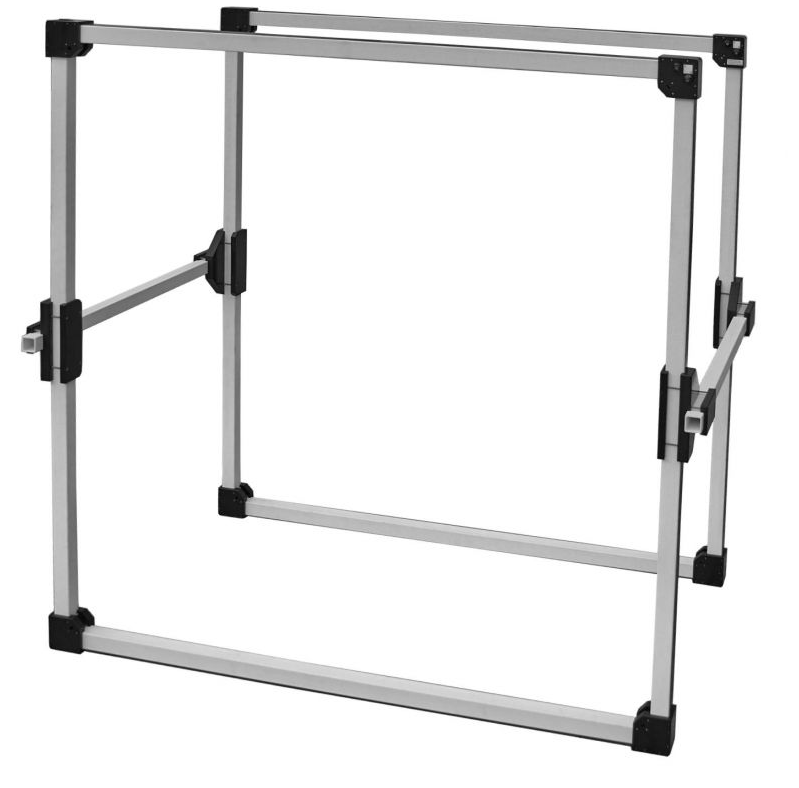

Schwarzbeck HHS 5215 ຂອງຫຼັກ Helmholtz (200 A/m, 0 – 100 kHz)
Number of turns (per Coil): 10
Maximum Coil Current: 20 A, 5 min.
Nominal Coil Current: 10 A continuous
Maximum Magnetic Field Strength: 200 A/m, 5 min.
Nominal Magnetic Field Strength: 100 A/m continuous
Magnetic Fieldstrength, 1 A Coil Current: 9.96 A/m (Coil Dist. 0.6 m)
Current required for 10 A/m: 1.004 A (Coil Dist. 0.6 m)
Mechanical Dimensions: 1.5 m × 1.5 m × 0.9 m
Maximum Coil Separation: 0.86 m
Coil Separation acc. IEC 1000-4-8: 0.6 m
Coil Separation for best uniformity: 0.86 m
Usable Frequency Range: 0 – 100 kHz
Inductance (per Coil): 0.6 mH
Inductance (Pair of Coils): 1.3 mH
Resistance (per Coil): 0.4 Ω
Resonant Frequency (Pair of Coils): > 400 kHz
Weight: 14 kg
