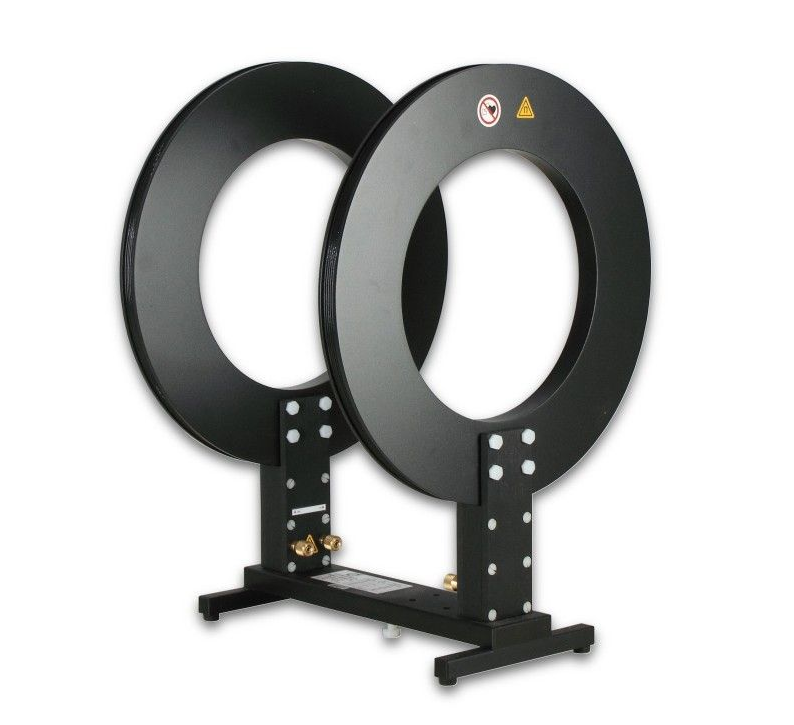

Schwarzbeck HHS 5204-36 ຂອງວົງເຮລມໂຮລດຮູບວົງ (2500 A/m, DC – 150 kHz)
Number of turns (per Coil): 36
Maximum Coil Current: 20 A, 5 min.
Nominal Coil Current: 10 A continuous
Coil Spacings: 200 mm, 250 mm, 300 mm
(the following data corresponds to a coil spacing of 200 mm)
Maximum Magnetic Field Strength: 2500 A/m, 5 min.
Nominal Magnetic Field Strength: 1288 A/m continuous
Magnetic Fieldstrength, 1 A Coil Current: 128.8 A/m
Conversion Current-Fieldstrength: 162.2 dBµA/m
Current required for 1 A/m: 7.76 mA
Conversion Current-Fieldstrength: 42.2 dB/m
Coil diameter: 400 mm
Mechanical Dimensions: 0.38 m × 0.58 m × 0.42 m
Terminals: 4 mm female with universal wire fixture
Usable Frequency Range: DC – 150 kHz
Inductance (per Coil): 1.15 mH
Inductance (Pair of Coils): 2.56 mH
Resistance (per Coil): 0.35 Ω
Resonant Frequency (Pair of Coils): > 200 kHz
Weight: 8.5 kg
