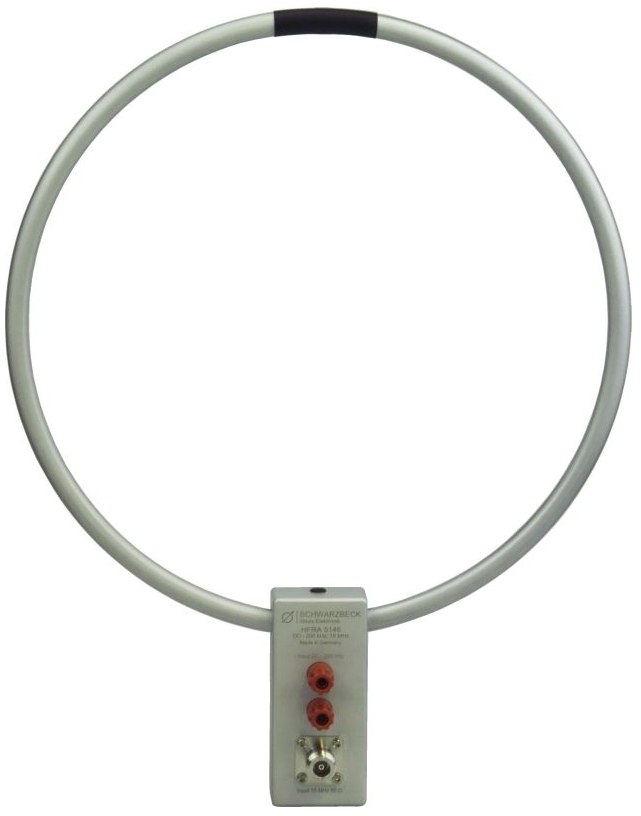

Schwarzbeck HFRA 5146 ເສົາອາກາດສົ່ງຕໍ່ວົງຈອນ (0 – 200 kHz, 15 MHz)

Frequency Range: 0 – 200 kHz, 15 MHz

Number of turns: 2

Loop diameter: 300 mm

Maximum current at the terminals “DC – 200 kHz”: 20 A

Magnetic Fieldstrength at 1 A coil current: 6.67 A/m

Terminal „DC–200 kHz“: 4 mm Polklemmen, 4 mm laboratory jacks

Input 15 MHz

Input Impedance: 50 Ω (15 MHz)

Continuous Input Power: 10 W / 40 dBm

Max. Input Power: 20 W / 43 dBm (1 min.)

Input terminal „Input 15 MHz“: N-Buchse, N-jack

Mechanical Dimensions: 410 × 315 × 50 mm

Mount: 1/4"; 3/8"

Weight: 430 g

Datasheet
