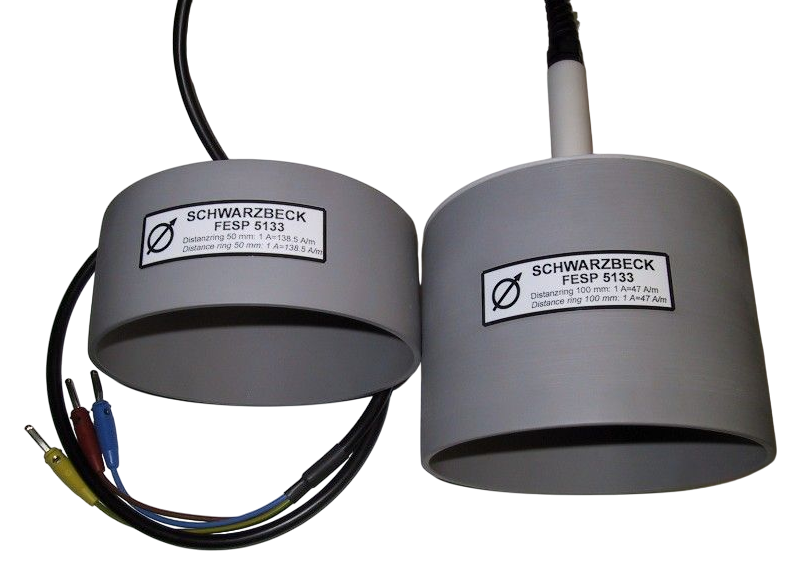

Schwarzbeck FESP 5133 ຂົດລວດທີ່ມີຮູບວົງມົນ (1385 A/m, 5 min, 0 – 200 kHz)
Number of turns: 36
Wire diameter: 1.25 mm Cu
Maximum coil current: 10 A, 5 min.
Nominal coil current: 5 A continuous
Maximum magnetic field strength: 1385 A/m, 5 min.
Nominal magnetic field strength: 700 A/m continuous
Magnetic field strength, 1 A coil current (with 50 mm distance ring): 138.5 A/m
Current required for 1 A/m (with 50 mm distance ring): 7.22 mA
Magnetic field strength, 1 A coil current (with 100 mm distance ring): 46.88 A/m
Current required for 1 A/m (with 100 mm distance ring): 21.3 mA
Flux density with 50 mA at 50 mm distance: 138.8 dBpT
Flux density with 50 mA at 100 mm distance: 136.8 dBpμA/m
Inner coil diameter: 133 mm
Medium coil diameter: 135.5 mm
Spacing coil center to measurement plane: 50 mm / 100 mm
Mechanical dimensions: 0.16 m × 0.25 m (0.3 m)
Coil terminals: 4 mm banana plugs or BNC female
Shield: Electrostatic
Usable frequency range: 0 – 200 kHz
Inductance: ≈ 300 μH
Resonance frequency: > 500 kHz
Resistance: 0.6 Ω
Weight: 1.1 kg
