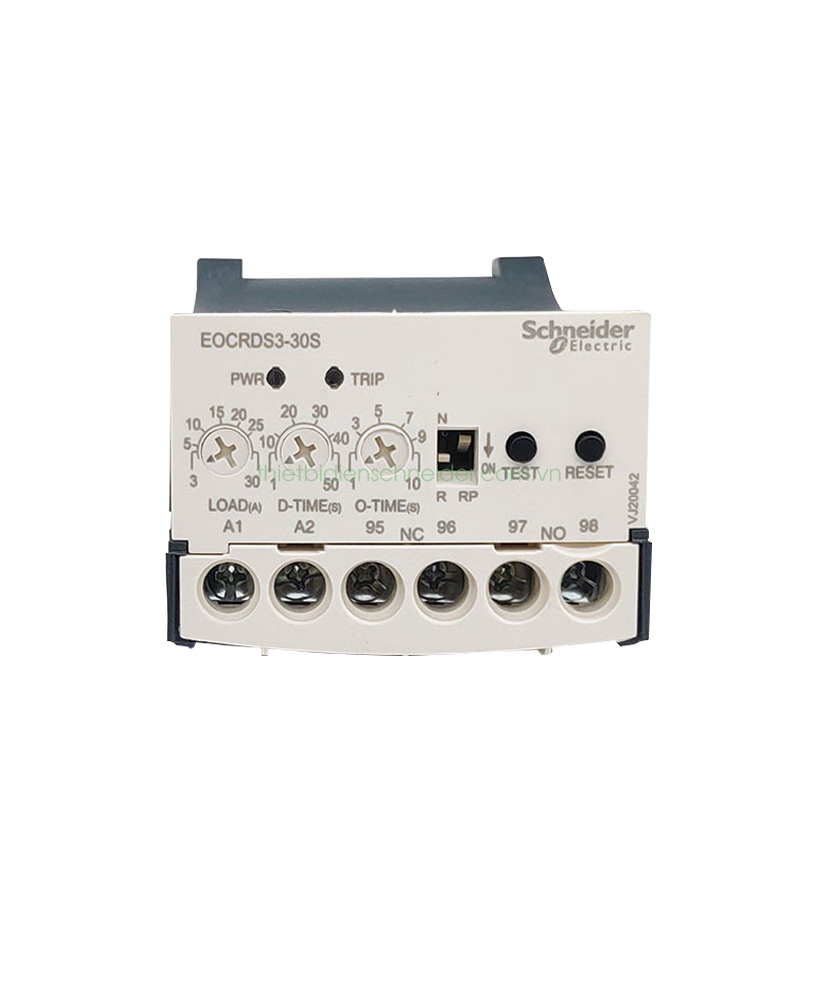

SCHNEIDER EOCR-DS3-30S Digital Motor Protection Relay

Supply Voltage: 24-240VAC/DC

Protection Range: 3-30A

Input/Output: NO+NC 2-SPST(1a1b)

Time Adjustment: Adjustable for 2 ranges of startup and overload

Startup Time: 1-50s

Reset Function: Manual/remote reset

Protection Functions: Overcurrent protection, phase loss protection, reverse phase protection, locked rotor protection, time delay, integrated MCU

Auxiliary Functions: LED indicator light, fail-safe operation

Display: No display screen

Current Transformer Mounting Type: Through-hole current transformer

Installation Type: Mounted on DIN rail 35mm

Operating Temperature: -20-60°C

Storage Temperature: -30-80°C
