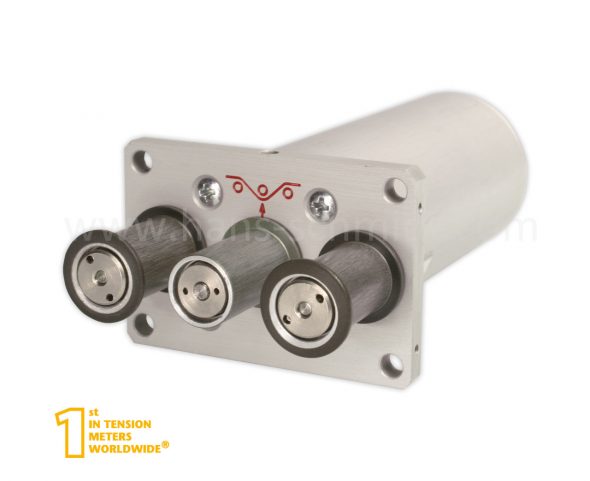

SCHMIDT TSB1-2000 ເຊັນເຊີຄວາມຕຶງຄຽດ (0 – 2000 cN)
Tension Range*: 0 – 2000 cN
Measuring Head Width**: 120 mm
Roller Width: 7, 10, 15, 20, 30 mm
Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale and ±1 digit; Other calibration material: ±3 % full scale or better
Overload protection: 100 % of tension range
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Natural frequency: Approx. 500 Hz, depending on tension range
Signal processing: Analog
Temperature drift: Less than ±0.05 % full scale/ºC
Output Signal:
+ Standard: 0 – 1 V DC (analog) impedance: ≥ 5 kΩ
+ Option: 0 – 10 V DC (analog), 4 – 20 mA (current) or mV/V (DMS)
Damping (fg): Standard: 30 Hz (other values on request)
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: +15…24 V DC, 21 mA regulated Code A3: max. 50 mA regulated; Code A10: max. +5 V DC, max. 20 mA regulated
Housing material: Aluminium
Dimensions: See dimensions
Weight, net (gross): approx. 280 g (430 g)
Other tension ranges available on request.
Other measuring units available, such as g or kg
* SCHMIDT calibration material depending on tension range and roller width
** Outside dimensions of front plate
Delivery Includes: Tension sensor TSW with transport packaging, operating instruction in german and english (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
