Measuring Range: Leakages with diameter bigger than 0.1 mm
Field of application: For leakages with diameter more than 0.1 mm and 1 bar pressure
Display: LED and acoustical
Power supply: 9 V battery or rechargeable battery
Housing: Plastic (ABS)
Dimensions: 180 x 90 x 70 mm
Weight: Device with probe 250 g / head phone 220 g; complete with carrying case: 1800 g
Delivery Includes: Leak-Detect LDT-1 with carrying case, 1 probe 110 mm, 1 headphone, 1 detection probe for small leakages < 0.1 mm, 1 battery, manufacturer`s calibration report and operating instruction in German or English (as requested)
Special Features
for pinpointing leakages in compressed-air systems, pneumatic systems, valves, fittings, steam pipelines, oxygen sockets in hospitals as well as checking internal sealing of e. g. cockpits, pressure chambers etc.
For leakages with more than Ø 0.1 mm. Pressure of 1 bar is recommended. For leakages with a diameter smaller than 0.1 mm, a higher pressure is recommended (e. g. 8 bar)
Measuring principle: Locating leakages by ultrasonic receiver

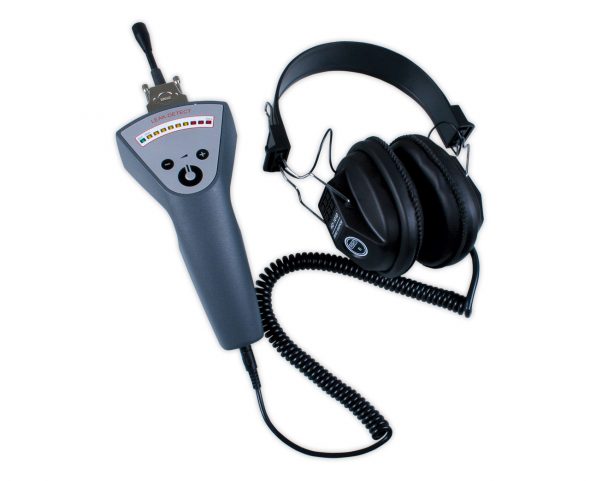

Leak-detect LDT-1 signal indication over headset and LED indicator
For leakages at hard to reach places a gooseneck (260 mm) or a ultrasonic parabolic reflector (up to distance of 20 m) are optional available
Manufacturer calibration certificate is optional available
