Resolution: 0.01 mm / 0.0005 inch
Measuring range: 0 – 12.5 mm / 0.5 inch
Depth of Jaw: 50 mm
Measuring principle: Self closing
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 300 g (350 g)
Special Features

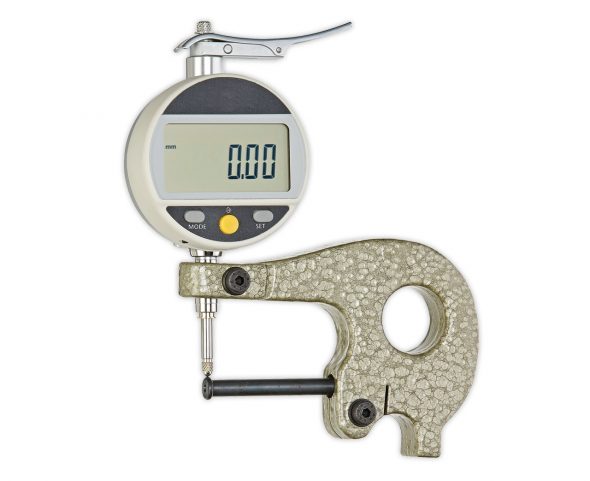

Thickness gauge JD-50-W features an easy to read digital display along with the high accuracy. It is used to measure the wall thickness of tubes.
The gauge is equipped with a contact point 6 mm Ø, which has at its end a collar with a radius of 1 mm. This enables it to check tubes,
which still have a burr from parting.
Measuring by specified spring force
Opening by lifting device (lever) – self closing thickness gauge JD-50-W
Output signals:
– USB
– RS-232
