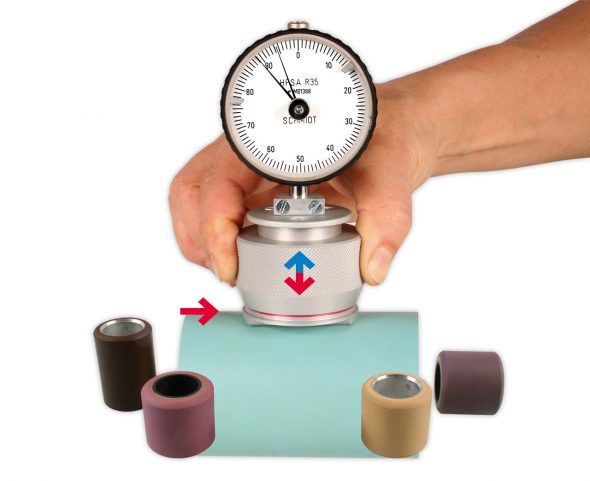

SCHMIDT HPSA-R20-M Shore Durometer (10 – 90 Shore A)
ຜູ້ຜະລິດ: SCHMIDT Model: HPSA-R20-M - ຕິດຕໍ່ພົວພັນ
Application: rubber coated rollers and rollers
Recommended Roller Ø: < 40 mm
Radius of Flat surface: 20 mm
Shore: Shore A
Indentor: Cone 35°, Ø 1.25 mm
Depth of indentation: 0 – 2.5 mm
Applications range: 10 – 90 Shore A units
Measuring spring force: 0.55 – 8.065 N
Test pressure*: Approx. 12.5 N
Display range: 0 – 100 Shore A units
Scale diameter: 54 mm
Working face radius: 20, 35 oder 55 mm
Base plate: 45 mm Ø
Weight, net (gross): Approx. 300 g (500 g)
Dimensions: 50 x 58 x 110 mm (LxWxH)
