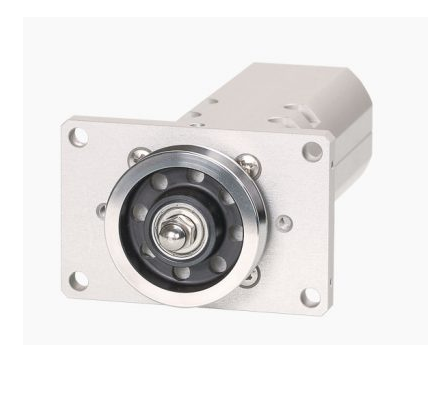

SCHMIDT FSR-50N ເຊັນເຊີຄວາມຕຶງຄຽດ (0 – 50 N)
Nominal Load: 0 – 50 N
Calibration: According to SCHMIDT factory procedure
Accuracy: ±1.5 % full scale and ±1 digit % full scale or better; Other calibration material: ±3 % full scale or better
Overload protection: 100 % of tension range
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Natural frequency: Approx. 500 Hz, depending on tension range
Signal processing: Analog (Option: digital)
Temperature drift: Less than ±0.05 % full scale/ºC
Output signal:
+ Standard: 0 – 1 V DC (analog) impedance: ≥ 5 kΩ
+ Option: 0 – 10 V DC (analog), 4 – 20 mA (current) or mV/V (DMS)
+ Option digital: USB (500 Hz), RS-232 (200 Hz), RS-422 (200 Hz) or Wi-Fi
Damping (fg): Standard: 30 Hz (other values on request)
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: +15…24 V DC, max. 50 mA regulated (standard output); Code A3: 50 mA, Code 422: 50 mA, Code 232: 40 mA
Housing material: Aluminium
Dimensions: See dimensions
Weight, net (gross): Approx. 250 g (350 g)
Delivery Includes: Tension sensor with transport packaging, operating instruction in german or english (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
