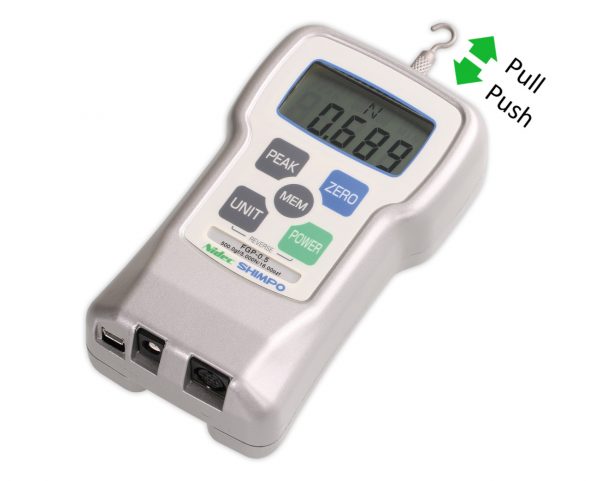

SCHMIDT FGP-50 ເຄື່ອງວັດແທກແຮງ (0 – 500.0 N)
Capacity: 0 – 500.0 N
Resolution: 0.1 N
Capacity in gf; kgf: 0 – 50.00 kgf
Capacity in ozf; lbf: 0 – 110.0 lbf
Measuring principle: Bidirectional force sensor with strain gauge
Displacement: 0.5 mm
Accuracy: ±0.2 % full scale, ±1 digit
Measuring unit: N, gf (kgf), ozf (lbf)
Display: 4 digit LCD, 12 mm high; selectable update time: 1000 ms (standard), 500 ms, 333 ms, 200 msc, 100 ms, 50 ms
Overload capacity: 200 % full scale, display flashes at 120 % full scale
Plug gauge: M6 male thread
Memory: 3 memory modes for max. 1000 readings
Zero adjustment: 10 % full scale
A/D converter: 12 bit
Output signal: USB; RS-232 (selectable baud rate – 2.4 kB, 4.8 kB, 9.6 kB, 19,2 kB); analog ±1 V DC, Overload capacity: Open Collector – NPN transistor (DC 30 V, 5 mA)
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Mounting threads for test stand: 4 x M4, Depth 6 mm
Housing material: Die-cast aluminium
Power supply: Rechargeable NiCd batteries (approx. 12 h continuous use) and/or 100 – 240 V AC adapter
Housing material: 147 x 75 x 38 mm (LxWxH)
Weight, net (gross): Approx. 450 g (1000 g)
Delivery Includes: Force gauge FGP with carrying case, standard accessories, AC adapter with 4 country adapters (EU/USA/UK/AUS-NZL), USB connecting cable, Certificate of Compliance with the order 2.1 according EN 10204, operating instruction in English
